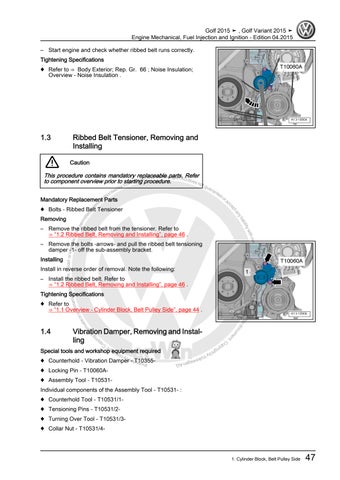

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015 – Start engine and check whether ribbed belt runs correctly. Tightening Specifications ♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation; Overview - Noise Insulation .

1.3

Ribbed Belt Tensioner, Removing and Installing Caution

This procedure contains mandatory replaceable parts. Refer n AG. Volkswagen AG do ageprocedure. es n w to component overview prior to starting s k o ol

♦ Bolts - Ribbed Belt Tensioner Removing

rrectness of i t to the co nf o r m spec atio h re n in wit

– Remove the ribbed belt from the tensioner. Refer to ⇒ “1.2 Ribbed Belt, Removing and Installing”, page 46 .

ility ab y li an pt ce

– Remove the bolts -arrows- and pull the ribbed belt tensioning damper -1- off the sub-assembly bracket. Installing

Install in reverse order of removal. Note the following: – Install the ribbed belt. Refer to ⇒ “1.2 Ribbed Belt, Removing and Installing”, page 46 . Tightening Specifications ♦ Refer to ⇒ “1.1 Overview - Cylinder Block, Belt Pulley Side”, page 44 .

Vibration Damper, Removing and Instal‐ ling Prote cted by

♦ Locking Pin - T10060A-

AG.

♦ Counterhold - Vibration Damper - T10355-

agen lksw Vo by

c o p yri gh t. C op yi

Special tools and workshop equipment required

ht rig py Co t.

1.4

thi sd o cu m en

es, in part or in w l purpos hole ercia , is n m m ot p o c erm or e t a itte iv r du rp o nl f e ng

Mandatory

t gu ara nte eo ra c

yV db ise r tho Replacement auParts s s

♦ Assembly Tool - T10531Individual components of the Assembly Tool - T10531- : ♦ Counterhold Tool - T10531/1♦ Tensioning Pins - T10531/2♦ Turning Over Tool - T10531/3♦ Collar Nut - T10531/4-
