s1.4 Vacuum Pump, Removing and Installing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

14 - O-Ring ❑ Coat with coolant ❑ Replace after removing 15 - Connection ❑ For coolant hose

16 - Bolt ❑ 9 Nm

17 - Mount ❑ For engine cover 18 - Engine Lifting Eye 19 - Bolt ❑ 8 Nm + 90° turn ❑ Replace after removing 20 - Partition Plate

21 - Ball Pin ❑ For engine cover 22 - Engine Lifting Eye 23 - Bolt ❑ 8 Nm + 90° turn ❑ Replace after removing 24 - Alignment Pin

Loosening Cylinder Head – Remove the bolts -arrows-.

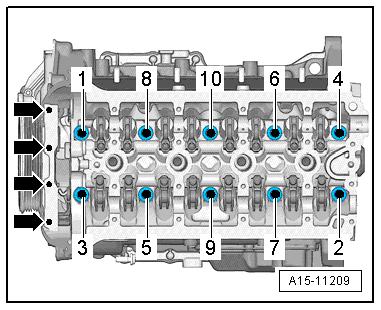

Protected by copyright . Copying fo pivate or co merci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Loosen the cylinder head bolts in the sequence -1 to 10-. u Cylinder Head Tightening Sequence – Tighten the cylinder head bolts in the sequence -1 to 10- as follows. Step Bolts m Tightening Specification/Addi‐tional Turn 1. -1- through -10r 40 Nm 2. -1- through -10- Turn an additional 90°. 3. -1- through -10- Turn an additional 90°. 4. Bolts -arrows- 4 Nm 5. Bolts -arrows- Turn an additional 90°.
