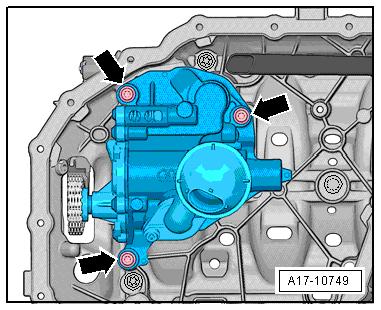

– Remove the bolts -arrows- and the oil pump. Installing Install in reverse order of removal and note the following: – Make sure there are both alignment bushings for centering the oil pump. – Check the oil intake pipe screen and the oil channels in the oil pan upper section for contamination before installing the oil pump. – Guide the oil pump chain sprocket into the drive chain and install the oil pump.

– Pull the chain tensioner spring with the Elbow Assembly Tool - T10118- in the direction of -arrow- and remove the Chain

Tensioner Locking Tool - T40265- . – Slowly release the Elbow Assembly Tool - T10118- . – Place the O-ring -item 9- ⇒ Item 9 (page 180) on the new oil baffle and coat with engine oil. – Insert the new oil baffle and secure it. Tightening specification.

Refer to -item 7- ⇒ Item 7 (page 180) . – Install the oil pan lower section. Refer to ⇒ “1.3 Oil Pan Lower Section, Removing and Installing”, page 182 .

– Fill with engine oil and then check the level. Refer to ⇒ Main‐tenance ; Booklet ; Engine; Draining; Oil Filter, Replacing;

Engine Oil, Filling . Tightening Specifications ♦ Refer to ⇒ “1.1 Overview - Oil Pan/Oil Pump”, page 179

Protectd by copyright . Co ying for pivate or com erci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. m 1.6 Oil Level Thermal Sensor - G266- , Re‐moving and Installing Caution p This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure. e Mandatory Replacement Parts ♦ O-ring - Oil Level Thermal Sensor

Removing – Drain the engine oil. Refer to ⇒ Maintenance ; Booklet 36.1 ; Procedure Descriptions; Engine Oil, Draining, Replacing Oil Filter, and Filling . – Remove the noise insulation. Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation; Overview - Noise Insulation .
