1.4 Knock Sensor 1 G61 , Removing and Installing

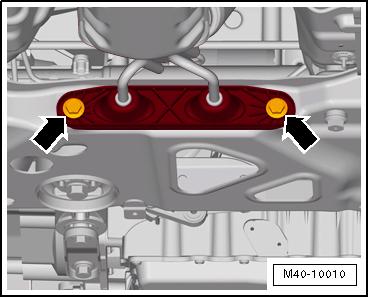

rotected by copyright . Copying for pivate or commerc al pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Remove the bolts -arrows-. s – Loosen the clamping sleeve -arrow- and push it toward the rear. i – Remove the catalytic converter with the front exhaust pipe. PInstalling – Place the screwdriver -2- into the opening -arrow- on the tur‐bocharger and pry out the seal -1-. – Install new seal. Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
– Mount the catalytic converter on the turbocharger and install the screw-type clamp loose. – Tighten the nuts and screw clamp. Refer to ⇒ Fig. ““Catalytic Converter - Tightening Specification and Se‐quence”“ , page 349 . Pay attention to the installation position of the screw-type clamp. Refer to ⇒ Fig. ““Installed Location of the Catalytic Converter Screw
Clamp”“ , page 349 . – Install the exhaust system free of tension. Refer to ⇒ “1.4 Exhaust System, Installing without Tension”, page 345 . Assemble in reverse order of disassembly. Tightening Specifications ♦ Refer to ⇒ “2.1 Overview - Emissions Control”, page 348 . ♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Underbody Panel;
Overview - Underbody Panels . ♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation;
Overview - Noise Insulation .
