5.2 Fuel Pressure Sensor G247 , Removing and Installing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

– Remove the connector and vacuum hoses from the Intake

Manifold Runner Control Valve - N316- -1-.

– Free up the wiring harness -1 and 2- from the air guide pipe. – Loosen the screw-type clamp -3-. – Remove the bolts -arrows-.

– Loosen the hose clamp -arrow- and remove the left charge air hose -1- with the air guide pipe downward.

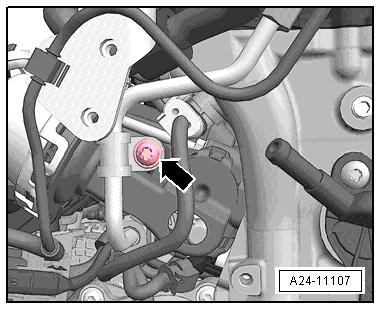

Protected by copyright . Copying for pivate or commerci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Remove the retaining clamp -arrow- for the high pressure line. CAUTION u Fuel system is under pressure. Risk of injury from fuel spraying out. – Wear protective eyewear. – Wear safety gloves. – Reduce the pressure: Lay clean cloths around the connec‐tion location and carefully open the connection point.

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

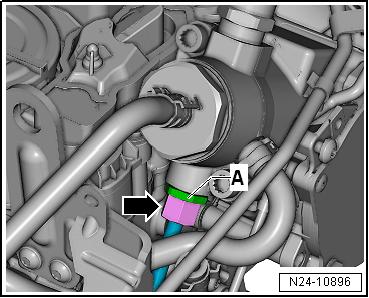

– Counterhold the connection -A- and loosen the union nut -arrow-.

– Loosen the union nut on the fuel rail with the Flare Nut Attach‐ment - 17mm - T10456- and remove the high pressure line.

Note

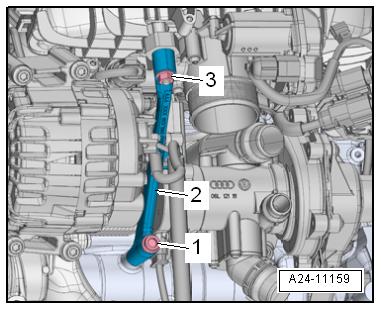

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. ♦ The fuel system must have no pressure. ♦ Wipe up any leaking fuel with a clean cloth. ♦ Seal the open connections with clean caps. Make sure that no contaminants enter the fuel system. – Slightly loosen the nut -3- and remove the bolt -1- completely.

– Disconnect the connector -1- from the Camshaft Position Sen‐sor - G40- .
