2.2 Flywheel, Removing and Installing

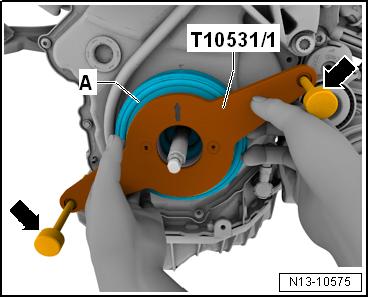

Protected by copyright . Copying for pivate or commer i al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Tighten the adjusting bolt -A- hand-tight, to secure the chain sprocket to the crankshaft. c – Remove the knurled bolt -arrows-. Remove the Counterhold Tool - T10531/1- and vibration damper -A-. Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

If Crankshaft is Turned without Vibration Damper – Place the Assembly Tool - Turning Over Tool -A- on the ten‐sioning pins and while doing so pay attention to the chain sprocket tooth contour. The flat side of the top of the tool sits in TDC.

– Tighten the Assembly Tool - Turning Over Tool with the Collar

Nut -B-.

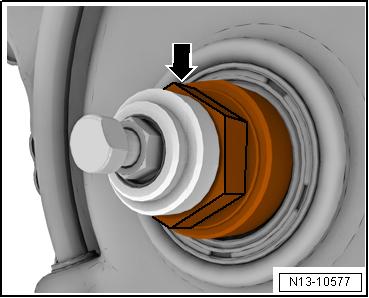

– The crankshaft can now be turned on the hex fitting -arrow-.
