2.3 Transmission Mount, Removing and Installing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

– Attach the Engine Sling - 2024A- hooks to the transmission lifting eyes and secure it with the securing pin -arrow-. – Hook the Shop Crane - VAS6100- with the Engine Support

Bridge - Special Hook (2 pc.) - 10-222A/20- on the Engine

Sling - Engine Bracket - 2024A/1- .

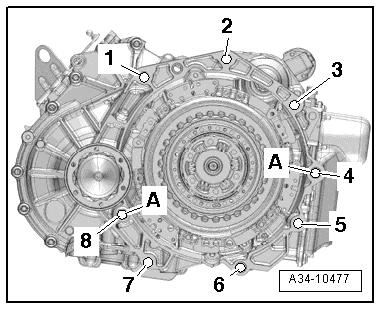

– Remove the bolts -1 to 8- for the transmission/engine connec‐tion.

Note

Ignore item -A-.

– Remove the transmission from the engine.

Protected by copyright . Copying for pivate or commerci al pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 1.3 Engine, Securing on Engine and Trans‐mission Holder Special tools and workshop equipment required ♦ Engine Sling - 2024A♦ Shop Crane - VAS6100♦ Engine And Transmission Holder - VAS6095Procedure s • The transmission is separated from the engine. Refer to ⇒ “1.2 Engine and Transmission, Separating”, page 19 . – Unlock the retaining tab in direction of -arrow-, remove the left engine cover mount -1-.

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

– Unclip the right engine cover mount -1-.

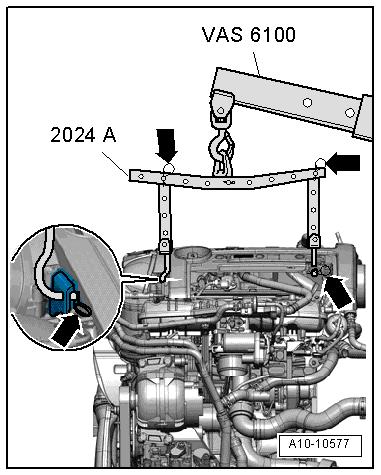

– Hook the Engine Sling - 2024A- to the engine and to the Shop

Crane - VAS6100- .

– To be aligned to the center of gravity of the engine assembly, the hole rails must be inserted as shown in the illustration.

– Secure the mounting hooks and pins on the engine support bridge using securing pins -arrows-. u – Lower the engine from the Engine and Gearbox Jack -

VAS6931- using the Shop Crane - VAS6100- .

– Remove the transmission alignment sleeve and secure the transmission side of the engine on the Engine And Transmis‐sion Holder - VAS6095- .

Protected by copyright . Copying for pivate or commerci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG.

1.4 Engine, Installing

Caution

This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure.

Mandatory Replacement Parts ♦ Bolts - Transmission Mount

♦ Bolts - Engine to Transmission
