1.3 Engine, Securing on Engine and Transmission Holder

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

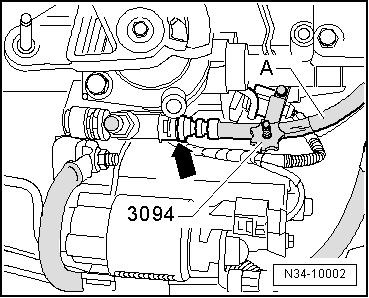

– Clamp the hose/line assembly -A- to the slave cylinder with the Hose Clamps - Up To 25mm - 3094- . – Pull hose/line assembly clip -arrow- out as far as stop. – Remove pipe/hose line assembly from the slave cylinder ven‐tilator.

Vehicles with DSG® Transmission

– Selector lever cable from the transmission and pull it out of the cable bracket. Refer to the ⇒ Controls, Housing; Rep. Gr. 34 ;

Selector Mechanism; Selector Mechanism, Removing and In‐stalling repair manual. – Disconnect the connector -2-.

– Push back the B+ terminal protector -1- and disconnect the B + wire from the starter solenoid switch.

– Remove the nut -3- and remove the ground wire.

Note

Depending on the version the ground cable is attached to the Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. starter bolt. – To discharge static electricity, touch vehicle ground with hand (without gloves). – Do not touch contacts in transmission connector with hands. – Disconnect the connector -4- for the DSG Transmission Me‐chatronic - J743- , by turning screw connection counterclock‐wise. Continuation for All – Remove the bolts -arrows- for the transmission (about 2 turns).
