4.7 Auxiliary Cooler, Removing and Installing

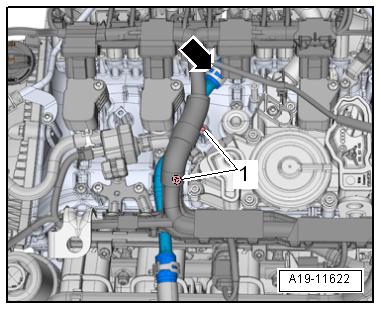

Protected by copyriht . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. ♦ Hose Clip Pliers - VAS6362Removing – Remove the ignition coils with power output stages cylinder “3”. Refer to ⇒ “1.3 Ignition Coils with Power Output Stages, Removing and Installing”, page 357 . – Release retainers in direction of -arrows- and remove wiring duct -1- from bracket. – Clamp off the coolant hoses -arrows- with the Hose Clamps Up To 25mm - 3094- . – Loosen the clamps and remove the coolant hoses. g – Remove the bolt -1- and remove the upper coolant pipe. Installing Install in reverse order of removal. Note the following: Note Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

Secure hose connections with standard production clamps. Refer to the Parts Catalog.

– Check the coolant level. Refer to ⇒ page 222 . Tightening Specifications ♦ Refer to ⇒ “3.1 Overview - Coolant Pipes”, page 241 .

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

4 Radiator/Coolant Fan

⇒ “4.1 Overview - Radiator/Coolant Fan”, page 244 . ⇒ “4.3 Overview - Fan Shroud and Radiator Fan”, page 247 . ⇒ “4.4 Radiator, Removing and Installing”, page 247 . ⇒ “4.5 Fan Shroud, Removing and Installing”, page 249 . ⇒ “4.6 Coolant Fan, Removing and Installing”, page 250 . ⇒ “4.7 Auxiliary Cooler, Removing and Installing”, page 251 . 4.1 Overview - Radiator/Coolant Fan

1 - Coolant Hose ❑ Lift the retaining clamp to remove ❑ Connecting. Refer to ⇒ Fig. ““Connect the Coolant Hose to the Coupling”“ , page 245 2 - O-Ring ❑ Replace after removing ❑ Coat with coolant

3 - Engine Coolant Tempera‐ture Sensor on Radiator Outlet - G83❑ Removing and instal‐ling. Refer to ⇒ “2.11 Engine Coolant Temperature Sensor on Radiator Outlet G83 , Removing and Instal‐ling”, page 239 . 4 - Radiator ❑ Removing and instal‐ling. Refer to ⇒ “4.4 Radiator, Remov‐ing and Installing”, page 247 . ❑ Change the coolant af‐ter replacing 5 - Coolant Hose ❑ Lift the retaining clamp to remove ❑ Connecting. Refer to ⇒ Fig. ““Connect the Coolant Hose to the Coupling”“ , page 245 6 - O-Ring ❑ Replace after removing ❑ Coat with coolant

7 - Charge Air Cooler ❑ Removing and installing. Refer to Protected by copyright . Copying fo pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. r ⇒ “2.3 Charge Air Cooler, Removing and Installing”, page 265 .
