1.2 Turbocharger, Removing and Installing
Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
– Disconnect the radiator fan connector -1-. To do this push the securing device -A- in the direction of -arrow A- and push the release downward.
– Push the left and right locking latches for the fan shroud at the same time in the direction of -arrow B- and remove the fan shroud upward from the radiator and remove from underneath. Installing Install in reverse order of removal.
Tightening Specifications ♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation;
Overview - Noise Insulation .
4.6 Coolant Fan, Removing and Installing
⇒ “4.6.1 Coolant Fan V7 , Removing and Installing”, page 250 Protected by copyright . Copying fo pivate or commerci a pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. ⇒ “4.6.2 Coolant Fan 2 V177 , Removing and Installing”, page 251 4.6.1 Coolant Fan - V7- , Removing and In‐stalling Removing Note During installation, all cable ties must be installed at the same location. s – Remove the fan shroud. Refer to ⇒ “4.5 Fan Shroud, Removing and Installing”, page 249 . – Disconnect the connector -arrow-. l – Remove the bolts -1-, and the Coolant Fan - V7- . r Installing Install in reverse order of removal. Note the following: – Install the fan shroud. Refer to ⇒ “4.5 Fan Shroud, Removing and Installing”, page 249 . Tightening Specifications ♦ Refer to ⇒ “4.1 Overview - Radiator/Coolant Fan”, page 244 .
Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
Removing
Note
– Remove the fan shroud. Refer to ⇒ “4.5 Fan Shroud, Removing and Installing”, page 249 . Protected by copyriht . Copying fo pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Disconnect the connector -arrow-. – Remove the bolts -2-, and remove the Coolant Fan 2 - V177- . Installing Install in reverse order of removal. Note the following: – Install the fan shroud. Refer to ⇒ “4.5 Fan Shroud, Removing and Installing”, page 249 . Tightening Specifications ♦ Refer to ⇒ “4.1 Overview - Radiator/Coolant Fan”, page 244 . 4.7 Auxiliary Cooler, Removing and Instal‐ling Special tools and workshop equipment required ♦ Hose Clamps - Up To 25mm - 3094Note r For vehicles with a DSG® transmission depending on the version an auxiliary cooler is installed front right. gRemoving – Remove the right front wheel. Refer to ⇒ Suspension, Wheels, Steering; Rep. Gr. 44 ; Wheels and Tires . – Remove the noise insulation. Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation; Overview - Noise Insulation . – Remove right front wheel housing liner. Refer to ⇒ Body Ex‐terior; Rep. Gr. 66 ; Wheel Housing Liner; Front Wheel Hous‐ing Liner, Removing and Installing . – Remove the front bumper cover. Refer to ⇒ Body Exterior; Rep. Gr. 63 ; Front Bumper; Bumper Cover, Removing and Installing .

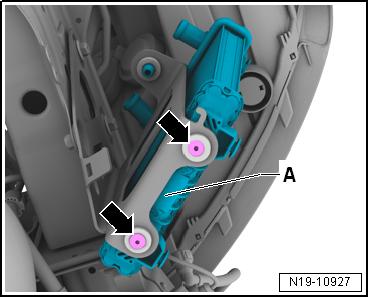

Proected by copyright . Copying for pivate or commerci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Remove the air guide -A- in the direction of -arrows- from the auxiliary cooler. Note Place a cloth underneath to catch any escaping coolant. u – Clamp off the coolant hoses -A and B- with Hose Clamps - Up To 25mm - 3094- . Open the spring clamps and remove the hose clamp from the auxiliary cooler. t – Remove the bolts -arrows-. Remove the auxiliary cooler -Aupward from the bracket. Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015 Installing Install in reverse order of removal. Note the following: – Install the front bumper cover. Refer to ⇒ Body Exterior; Rep.
Gr. 63 ; Front Bumper; Bumper Cover, Removing and Instal‐ling . – Install the wheel housing liner. Refer to ⇒ Body Exterior; Rep.
Gr. 66 ; Wheel Housing Liner; Front Wheel Housing Liner,
Removing and Installing . – Install the noise insulation. Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation; Overview - Noise Insulation . – Install the wheel. Refer to ⇒ Suspension, Wheels, Steering;
Rep. Gr. 44 ; Wheels and Tires . Tightening Specifications ♦ Refer to ⇒ “4.2 Overview - Auxiliary Cooler”, page 245 .
Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
s e s , i Protected by copyright . Copying for pivate or commerci al pur p

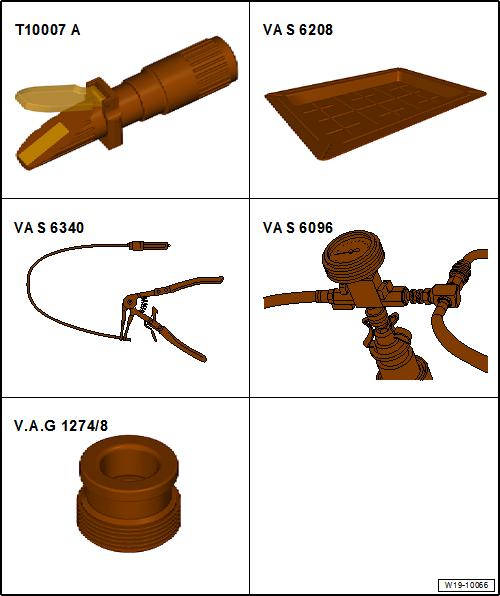

p a r t o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f 5 Special Tools Special tools and workshop equipment required ♦ Cooling System Tester Adapter - VAG1274/8♦ Hose Clip Pliers VAS6340♦ Cooling System Charge Kit - VAS6096n ♦ Shop Crane - Drip Tray VAS6208o ♦ Refractometer - T10007Ar in format ion in this document. Copyright by Volkswagen AG.
♦ Torque Wrench 1331 Insert - Ring Wrench - 12mm - T10360-
♦ ♦ Protected by copyright . Copying for pivate or commerci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Cooling System Tester - VAG1274Bu Cooling System Tester - Adapter - VAG1274/8Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
♦ Cooling System Tester - Adapter - VAG1274/9-
♦ Hose Clip Pliers - VAS6340-
