2.2 Engine Mount, Removing and Installing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

Procedure

• Engine/transmission assembly removed and secured on the

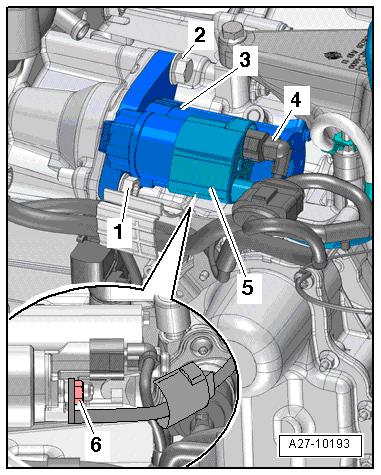

Engine Support - T10497- . – Remove the starter. Refer to ⇒ Electrical Equipment; Rep. Gr. 27 ; Starter; Starter, Removing and Installing .

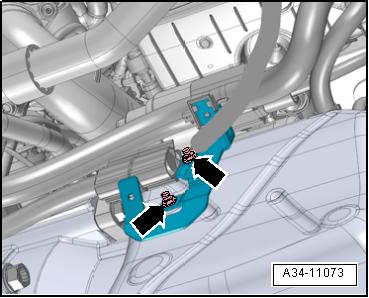

– Remove the nuts -arrows-, and remove the front bracket from the transmission fluid pan.

Note

The threaded bolts are welded to the front of the oil pan.

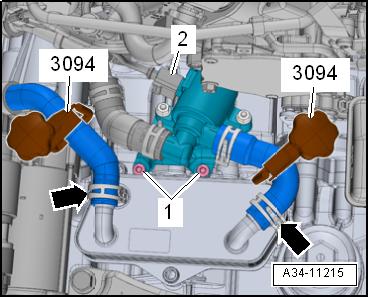

Protected by copyright . Copying for piva e or commerci al p r po s e , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Disconnect the connector -2-. Note Place a cleaning cloth underneath, to catch coolant leaking out. s – Loosen the hose clamps -arrows-, remove the coolant hoses from the transmission fluid cooling circuit. – Remove the bolts -1- and set aside the Transmission Coolant Valve - N488- . u – Seal the open lines and connections with clean plugs from the Engine Bung Set - VAS6122- . Note t Ignore Hose Clamps - Up To 25mm - 3094- .
