c2.10 Engine Coolant Temperature Sensor G62 , Removing and Installing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

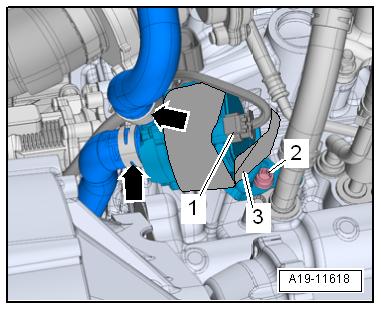

– Open the heat protection sleeve -3-. – Disconnect the connector -1-.

– Clamp the coolant hoses on the After-Run Coolant Pump -

V51- with the Hose Clamps - Up To 25mm - 3094- .

Note

Place a cleaning cloth underneath, to catch coolant leaking out.

– Loosen the clamps -arrows- and remove the coolant hoses. – Remove the bolt -2- and the After-Run Coolant Pump - V51- . Installing Install in reverse order of removal. Note the following:

Note

Secure hose connections with standard production clamps. Refer to the Parts Catalog.

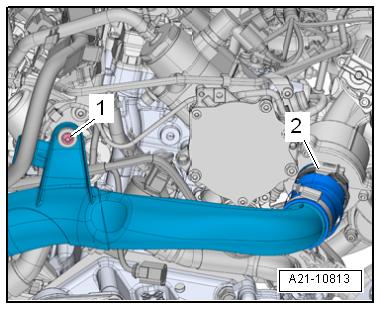

Protected by copyright . Copying fo pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Check the coolant level. Refer to ⇒ page 222 . Tightening Specifications ♦ Refer to ⇒ “2.2 Overview - Electric Coolant Pump”, page 226 . ♦ Refer to ⇒ “3.1 Overview - Air Filter Housing”, page 293 . ♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation; Overview - Noise Insulation . 2.5 Coolant Shut-Off Valve - N82- , Remov‐ing and Installing r Special tools and workshop equipment required ♦ Hose Clamps - Up To 25mm - 3094♦ Hose Clip Pliers - VAS6362Removing – Remove the air filter housing. Refer to ⇒ “3.2 Air Filter Housing, Removing and Installing”, page 294 . – Loosen the hose clamp -2-. – Remove bolt -1-, push the left air guide pipe left.
