3 Secondary Air Injection System

⇒ “3.1 Overview - Secondary Air Injection System”, page 352 . ⇒ “3.2 Secondary Air Injection Pump Motor V101 , Removing and Installing”, page 353 . ⇒ “3.3 Secondary Air Injection Solenoid Valve N112 , Removing and Installing”, page 353 . 3.1 Overview - Secondary Air Injection System

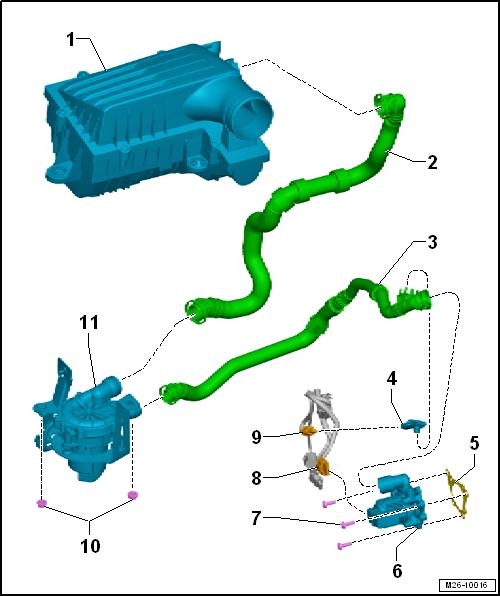

1 - Air Filter Housing ❑ Removing and instal‐ling. Refer to ⇒ “3.2 Air Filter Housing, Removing and Instal‐ling”, page 294 . 2 - Connecting Line ❑ From the Secondary Air Injection Pump Motor V101- on the air filter housing 3 - Connecting Line ❑ From the Secondary Air Injection Solenoid Valve - N112- on the Secon‐dary Air Injection Pump Motor - V101-

4 - Secondary Air Injection Sensor 1 - G609-

5 - Seal ❑ Replace after removing the Secondary Air Injec‐tion Solenoid Valve N112- .

6 - Secondary Air Injection Sol‐enoid Valve - N112❑ Secondary Air Injection Solenoid Valve - N112- , Removing and instal‐ling. Refer to ⇒ “3.3 Secondary Air In‐jection Solenoid Valve N112 , Removing and Installing”, page 353 . 7 - Bolt ❑ 9 Nm

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG.

8 - Electric Connection ❑ For the Secondary Air Injection Solenoid Valve - N1129 - Electric Connection ❑ For the Secondary Air Injection Sensor 1 - G60910 - Nut ❑ 8 Nm
