4.5 Fan Shroud, Removing and Installing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

3 Coolant Pipes

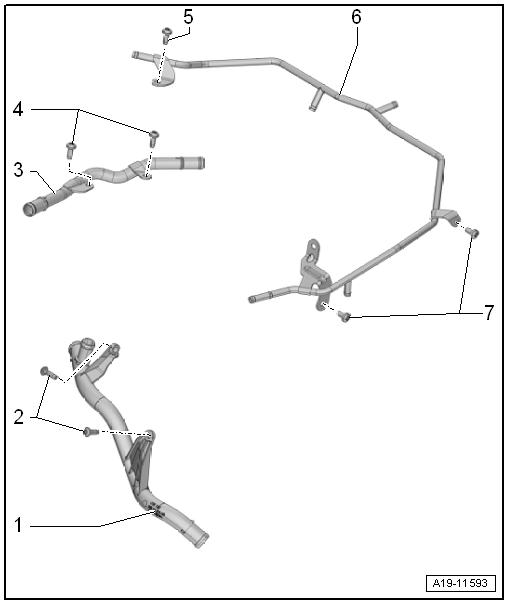

⇒ “3.1 Overview - Coolant Pipes”, page 241 . ⇒ “3.2 Front Coolant Pipes, Removing and Installing”, page 241 . ⇒ “3.3 Upper Coolant Pipes, Removing and Installing”, page 242 . 3.1 Overview - Coolant Pipes

1 - Front Coolant Pipe ❑ Removing and instal‐ling. Refer to ⇒ “3.2 Front Coolant Protected by copyright . Copying for pivate or commer i al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Pipes, Removing and Installing”, page 241 . 2 - Bolts ❑ 6 Nm 3 - Upper Coolant Pipe ❑ Removing and instal‐ling. Refer to ⇒ “3.3 Upper Coolant Pipes, Removing and Installing”, page 242 . 4 - Bolts ❑ 9 Nm 5 - Bolt ❑ 9 Nm c 6 - Coolant Pipe 7 - Bolts ❑ 9 Nm

3.2 Front Coolant Pipes, Removing and In‐stalling

Special tools and workshop equipment required ♦ Hose Clamps - Up To 25mm - 3094♦ Hose Clip Pliers - VAS6362Removing – Remove the bolts -1 and 3-.
