2.3 Mechanical Switch Valve, Removing and Installing

Protected by copyright . Copying for pivate or commerci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. ♦ Bolts - Lower Timing Chain Cover Removing • The transmission is removed. – Remove the oil pan lower section. Refer to ⇒ “1.3 Oil Pan Lower Section, Removing and Installing”, page 182 . u – Remove the rear sealing flange. Refer to ⇒ “2.3 Sealing Flange, Removing and Installing, Transmission Side”, page 59 . – Remove the oil pump. Refer to ⇒ “1.5 Oil Pump, Removing and Installing”, page 188 . – Disconnect the connector -1-. Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

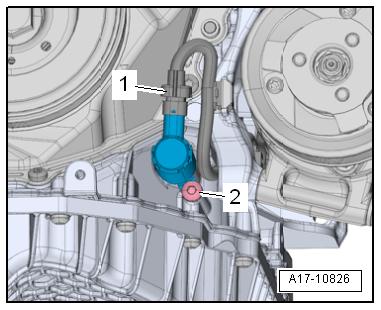

– Remove the bolts -arrows-.
