4.5 Sliding Bar Ball, Installing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

– Remove the camshaft and cover the open engine compo‐nents.

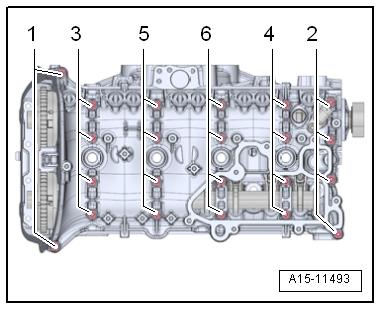

Camshafts, Installing

Note

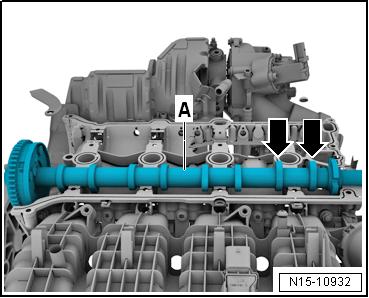

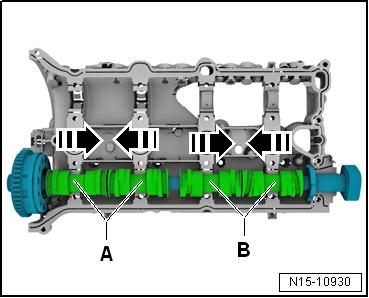

♦ Sealing surfaces must be completely free of oil and grease. Protected by copyriht . Copying for pivate or commerci al pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. ♦ Pay attention that all roller rocker levers rest on the valve stem ends. – If the crankshaft was turned in the meanwhile: bring the piston for cylinder 1 to Top Dead Center (TDC) and then turn the crankshaft back just a little. – Remove any sealant residue from the groove on the cylinder head cover as well as on the sealing surfaces. – Clean the sealing surfaces. They must be free of oil and grease. – Lubricate the running surfaces of both camshafts. s – Place the intake camshaft -A- in the cylinder head. Turn the cam lobes from cylinder 4 -arrows- upward. – Check if the valve lifters for the cam adjustment actuators are retracted. g – Place the exhaust camshaft in the cylinder head cover as il‐lustrated. The cam pair -A and B- must be pushed together.

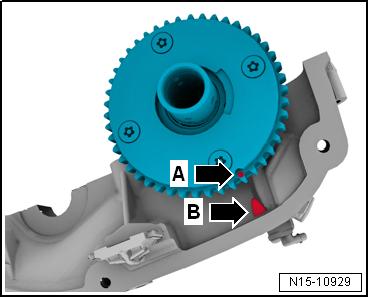

– Turn the exhaust camshaft until the markings -A and B- align.
