3.4 Crankshaft Needle Bearing, Replacing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

2 Cylinder Block, Transmission Side

⇒ “2.1 Overview - Cylinder Block, Transmission Side”, page 57 ⇒ “2.2 Flywheel, Removing and Installing”, page 58 ⇒ “2.3 Sealing Flange, Removing and Installing, Transmission Side”, page 59 2.1 Overview - Cylinder Block, Transmission Side

1 - Flywheel ❑ Removing and instal‐ling. Refer to ⇒ “2.2 Flywheel, Re‐moving and Installing”, page 58 . ❑ It is possible to install in one position only, the holes are offset.

2 - Alignment Sleeve 3 - Sealing Flange, Transmis‐sion Side ❑ With seal ❑ Replace after removing ❑ Removing and instal‐ling. Refer to ⇒ “2.3 Sealing Flange, Removing and Instal‐ling, Transmission Side”, page 59 . ❑ Do not oil or grease the sealing lip of seal ❑ Wipe off any oil on the crankshaft bearing pin with a clean cloth before installing. ❑ Guide sleeve may only be removed after the sealing flange has been slid onto the crankshaft Protected by copyright . Copying fo pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. r pin. 4 - Cylinder Block 5 - Bolt ❑ Tightening specification and sequence. Refer to ⇒ “2.3 Sealing Flange, Removing and Installing, Transmission Side”, page 59 . 6 - Intermediate Plate ❑ Illustration does not correspond to version in vehicle. ❑ Must be located on dowel sleeves ❑ Be careful not to damage or bend when installing ❑ Is hooked in at sealing flange. Refer to ⇒ Fig. ““Installing Intermediate Plate”“ , page 58 7 - Alignment Sleeve 8 - Bolt ❑ 60 Nm + 90° turn ❑ Replace after removing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

❑ For the dual-mass flywheel

Note

Only six bolts are installed, two bolt openings remain open.

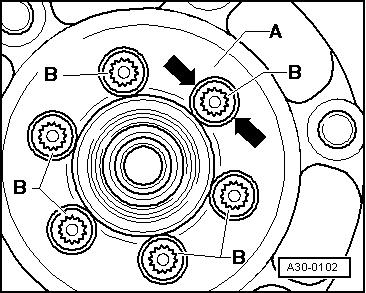

Protected by copyright . Copying for pivate or commerci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Installing Intermediate Plate – Hook in intermediate plate at sealing flange and push it onto the alignment sleeves -arrows-. 2.2 Flywheel, Removing and Installing Special tools and workshop equipment required ♦ Flywheel Retainer - 3067Caution u This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure. Mandatory Replacement Parts ♦ Bolts - Flywheel Removing • The transmission is removed. Note ♦ Remove the bolts -B- by hand. Do not use an air-powered or impact wrench. ♦ When removing bolts, ensure bolt head does not come in con‐tact with the flywheel. ♦ Turn the flywheel -A- until the bolts -B- line up with the holes -arrows-.

– Insert the Flywheel Retainer - 3067- into the hole in the cylin‐der block -B-.

– Loosen and remove bolts for flywheel. Installing Install in reverse order of removal. Note the following:

Note

Replace the bolts that were tightened with an additional turn.
