4.6 Coolant Fan, Removing and Installing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

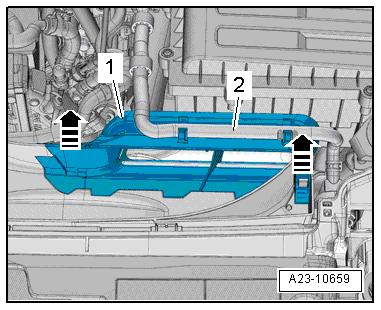

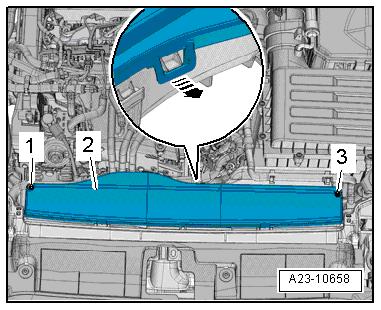

Protectd by copyright . Copying for pivate or commerci al pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Open the retainer in direction of -arrow- and remove the cover -2-. s – Free up the coolant hose -2-. – Open the retaining tabs in direction of -arrows-, remove the upper air duct -1-. e – Remove the left and right bolts -arrow-. – Unclip the air guide lower section -1- and remove. Note

Place a cleaning cloth underneath, to catch coolant leaking out.

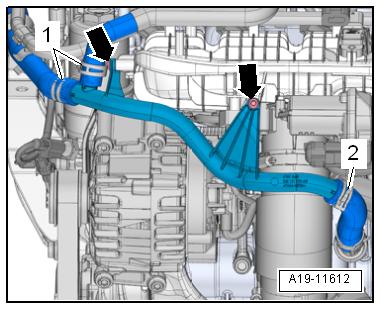

– Disconnect the coolant hoses -1 and 2- with Hose Clamps -

Up To 25mm - 3094- . – Loosen the clamps and remove the coolant hoses.

– Remove the bolts -arrows- and the front coolant pipe. Installing Install in reverse order of removal. Note the following:

Note

Secure hose connections with standard production clamps. Refer to the Parts Catalog.

– Check the coolant level. Refer to ⇒ page 222 . Tightening Specifications ♦ Refer to ⇒ “3.1 Overview - Coolant Pipes”, page 241 .

3.3 Upper Coolant Pipes, Removing and In‐stalling

Special tools and workshop equipment required ♦ Hose Clamps - Up To 25mm - 3094-
