e2.11 Engine Coolant Temperature Sensor on Radiator Outlet G83 , Removing and Installing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

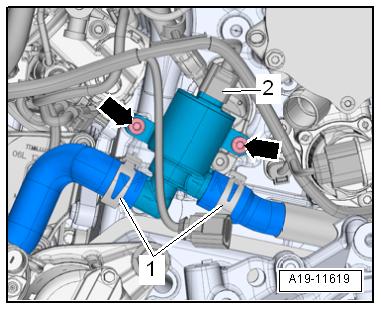

– Disconnect the connector -2-.

– Clamp the coolant hoses on Coolant Shut-Off Valve - N82with the Hose Clamps - Up To 25mm - 3094- .

Note

Place a cleaning cloth underneath, to catch coolant leaking out.

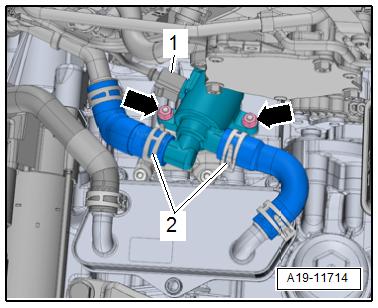

– Loosen the hose clamps -1- and remove the coolant hoses. – Remove the bolts -arrows-, and remove the Coolant Shut-Off

Valve - N82- .

Installing Install in reverse order of removal. Note the following:

Note Protected by copyriht . Copying for piva e or commerci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Secure hose connections with standard production clamps. Refer to the Parts Catalog. – Check the coolant level. Refer to ⇒ page 222 . Tightening Specifications ♦ Refer to ⇒ “2.2 Overview - Electric Coolant Pump”, page 226 . ♦ Refer to ⇒ “3.1 Overview - Air Filter Housing”, page 293 . 2.6 Transmission Coolant Valve - N488- , Removing and Installing u Special tools and workshop equipment required ♦ Hose Clamps - Up To 25mm - 3094♦ Hose Clip Pliers - VAS6362Vehicles with a DSG® Transmission t Removing – Remove the noise insulation. Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation; Overview - Noise Insulation . g – Remove the air filter housing. Refer to ⇒ “3.2 Air Filter Housing, Removing and Installing”, page 294 . – Free up the wiring harness -1 and 2- from the air guide pipe. – Loosen the screw-type clamp -3-. – Remove the bolts -arrows-.

Golf 2015 ➤ , Golf Variant 2015 ➤ Protectd by copyright . Co ying for pivate or commer i al pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Loosen the hose clamp -arrow- and remove the charge air hose -1- with the air guide pipe downward. – Disconnect the connector -1-. – Clamp the coolant hoses on Transmission Coolant Valve N488- with Hose Clamps - Up To 25mm - 3094- . Note Place a cleaning cloth underneath, to catch coolant leaking out. – Loosen the clamps -2- and remove the coolant hoses. s– Remove the nuts -arrows- and then remove the Transmission Coolant Valve - N488- . c Installing Install in reverse order of removal. Note the following: Note p Secure hose connections with standard production clamps. Refer to the Parts Catalog. e – Check the coolant level. Refer to ⇒ page 222 . Tightening Specifications Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015 ♦ Refer to ⇒ “2.2 Overview - Electric Coolant Pump”, page 226 . ♦ Refer to ⇒ “3.1 Overview - Air Filter Housing”, page 293 . ♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation;

Overview - Noise Insulation .

2.7 Coolant Pump, Removing and Installing

Removing – Drain the coolant. Refer to ⇒ “1.3 Coolant, Draining and Filling”, page 217 . – Remove the air filter housing. Refer to ⇒ “3.2 Air Filter Housing, Removing and Installing”, page 294 . – Free up the wiring harness -1 and 2- from the air guide pipe. – Loosen the screw-type clamp -3-. – Remove the bolts -arrows-.
