2.7 Subframe Mount, Checking Adjustment

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

2 Subframe Mount

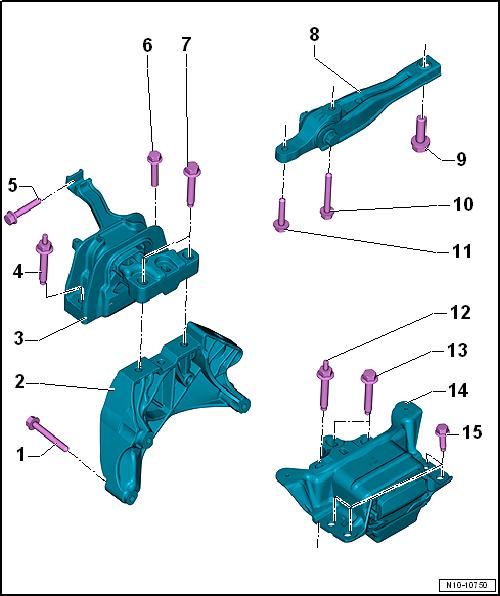

⇒ “2.1 Overview - Subframe Mount”, page 29 ⇒ “2.2 Engine Mount, Removing and Installing”, page 30 ⇒ “2.3 Transmission Mount, Removing and Installing”, page 31 ⇒ “2.4 Pendulum Support, Removing and Installing”, page 33 ⇒ “2.5 Engine, Supporting in Installed Position”, page 33 ⇒ “2.6 Subframe Mount, Adjusting”, page 36 ⇒ “2.7 Subframe Mount, Checking Adjustment”, page 37 2.1 Overview - Subframe Mount

1 - Bolt ❑ Replace after removing ❑ Tightening specification and sequence. Refer to Protected by copyright . Copying fo pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. r ⇒ Fig. ““Engine Support - Tightening Specifica‐tion and Sequence”“ , page 56 . 2 - Engine Support ❑ Removing and instal‐ling. Refer to ⇒ “1.6 Engine Support, Removing and Instal‐ling”, page 55 . 3 - Engine Mount ❑ With support arm ❑ Removing and instal‐ling. Refer to ⇒ “2.2 Engine Mount, Removing and Instal‐ling”, page 30 . 4 - Bolt ❑ 40 Nm + 90° turn ❑ Replace after removing 5 - Bolt ❑ 20 Nm + 90° turn ❑ Replace after removing 6 - Bolt ❑ 40 Nm + 90° turn ❑ Replace after removing 7 - Bolt ❑ 60 Nm +90° turn ❑ Replace after removing 8 - Pendulum Support ❑ Removing and installing. Refer to ⇒ “2.4 Pendulum Support, Removing and Installing”, page 33 . 9 - Bolt ❑ Replace after removing
