2.9 Engine Temperature Control Actuator N493 , Removing and Installing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

Removing

Note

During installation, all heat insulation sleeves must be installed at the same location.

CAUTION

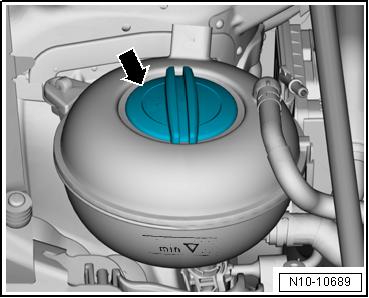

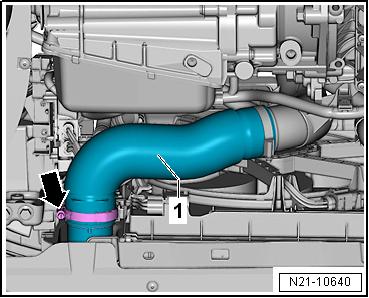

The coolant system is under pressure when the engine is warm. Risk of scalding due to hot steam and hot coolant. Possibility of burning or scalding the skin and other parts of the body. – Wear safety gloves. – Wear protective eyewear. Protected by copyright . Copyin for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Reduce the pressure: cover the coolant reservoir cap with a cloth and carefully open. – Remove the cap -arrow- from the coolant expansion tank. – Remove the noise insulation. Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation; Overview - Noise Insulation . – Free up the wiring harness -1 and 2- from the air guide pipe. – Loosen the screw-type clamp -3-. – Remove the bolts -arrows-. g – Loosen the hose clamp -arrow- and remove the charge air hose -A- with the air guide pipe downward.
