2.4 Fuel Injector Seals, Replacing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

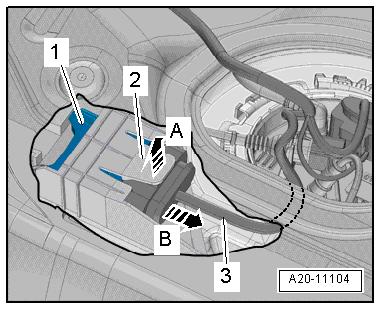

Fuel Pump Control Module - J538- -1-

Protected by copyriht . Copying fo pivate or commerci al pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Ignition Coils and Adjusting Elements 1 - Ignition Coil 1 with Power Output Stage - N702 - Ignition Coil 2 with Power Output Stage - N1273 - Ignition Coil 3 with Power Output Stage - N2914 - Ignition Coil 4 with Power Output Stage - N2925 - Camshaft Position Sensor 3 - G3006 - Cylinder 1 Exhaust Camshaft B - N581- only installed on ve‐hicles with the engine codes CHHB,CNTA, CXCA CXDA CXCB 7 - Cylinder 1 Exhaust Camshaft Adjuster A - N580- only installed on vehicles with the engine codes CHHB, CNTA, CXCA CXDA CXCB s 8 - Cylinder 2 Exhaust Camshaft Adjuster A - N588- only installed on vehicles with the engine codes CHHB, CNTA, CXCA, CXDA, CXCB r 9 - Cylinder 2 Exhaust Camshaft B - N589- only installed on ve‐hicles with the engine codes CHHB, CNTA, CXCA, CXDA, CXCB 10 - Cylinder 3 Exhaust Camshaft B - N597- only installed on ve‐hicles with the engine codes CHHB, CNTA, CXCA, CXDA, CXCB 11 - Cylinder 3 Exhaust Camshaft Adjuster A - N596- only instal‐led on vehicles with the engine codes CHHB, CNTA, CXCA, CXDA, CXCB g 12 - Cylinder 4 Exhaust Camshaft Adjuster A - N604- only instal‐led on vehicles with the engine codes CHHB, CNTA, CXCA, CXDA,CXCB 13 - Cylinder 4 Exhaust Camshaft B - N605- only installed on ve‐hicles with the engine codes CHHB, CNTA, CXCA , CXDA, CXCB 14 - EVAP Canister Purge Regulator Valve 1 - N80-

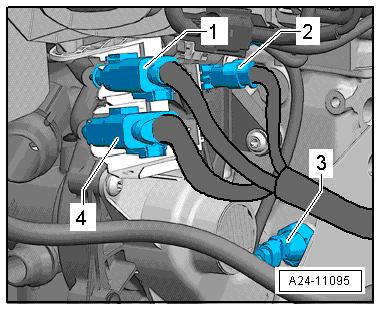

Combustion Chambers Fuel Injectors 1 - Cylinder 1 Fuel Injector - N302 - Cylinder 2 Fuel Injector - N313 - Cylinder 3 Fuel Injector - N324 - Cylinder 4 Fuel Injector - N335 - Fuel Pressure Sensor - G247-

6 - Knock Sensor 1 - G61-

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

Intake Manifold Fuel Injectors 1 - Cylinder 1 Fuel Injector 2 - N532- only installed on vehicles with the engine codes CXDA and CHHB 2 - Cylinder 2 Fuel Injector 2 - N533- only installed on vehicles with the engine codes CXDA and CHHB 3 - Cylinder 3 Fuel Injector 2 - N534- only installed on vehicles with the engine codes CXDA and CHHB 4 - Cylinder 4 Fuel Injector 2 - N535- only installed on vehicles with the engine codes CXDA and CHHB 5 - Intake Manifold Sensor - GX9-

6 - Low Fuel Pressure Sensor - G410-

View from Above

1 - Fuel supply line 2 - Coolant line

3 - Connector for the intake manifold-fuel Injector, only installed on vehicles with the engine codes CXDA and CHHB 4 - Camshaft Position Sensor - G40-

5 - Intake Manifold Sensor - GX9- , only installed on vehicles with the engine codes CXDA and CHHB 6 - Low Fuel Pressure Sensor - G410- , only installed on vehicles with the engine codes CXDA and CHHB

Fuel Pressure Sensor in the High Pressure System 1 - Fuel Pressure Sensor - G247-

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Variable Intake Manifold 1 - Channel separating plate vacuum diaphragm (intake manifold flaps) 2 - Intake Manifold Runner Control Valve - N316-

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

Intake Manifold Runner Position Sensor - G336- -1-

Connectors

Protected by copyright . Copying fo pivate or co merci al pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 1 - For combustion chambers fuel injectors 2 - For Knock Sensor 1 - G613 - For Oil Pressure Switch, Level 3 - F447s 4 - For Intake Manifold Runner Control Valve - N316- , Fuel Pres‐sure Sensor - G247- , Intake Manifold Runner Position Sensor G336- , Engine Coolant Temperature Sensor - G62- , Camshaft Position Sensor - G40m High Pressure Pump and Camshaft Position Sensor 1 - Camshaft Position Sensor 3 - G300r2 - Fuel Pressure Regulator Valve - N2763 - Fuel line to the intake manifold-fuel injector fuel rail, only in‐stalled on vehicles with the engine codes CXDA and CHHB 4 - High pressure line to the direct fuel injection fuel rail 5 - Fuel supply line from the fuel tank Pfeile - Bolts

Engine Speed Sensor - G28- -1-
