1.6 Engine Speed Sensor G28 , Removing and Installing

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

11 - Secondary Air Injection Pump Motor - V101❑ Secondary Air Injection Pump Motor - V101- , Removing and installing. Refer to ⇒ “3.2 Secondary Air Injection Pump Motor V101 , Removing and Installing”, page 353 .

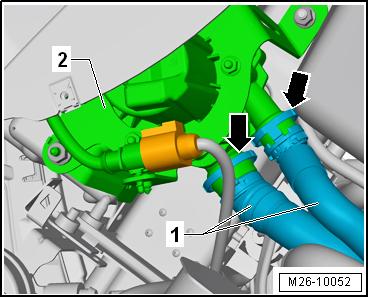

Protected by copyright . Copying fo pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 3.2 Secondary Air Injection Pump Motor V101- , Removing and Installing Removing – Remove the noise insulation. Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Noise Insulation; Overview - Noise Insulation . – Open the release -arrows- and remove the lines -1- from the Secondary Air Injection Pump Motor - V101- -2-. r – Disconnect the connector -2- from the Secondary Air Injection Pump Motor - V101- . – Remove the nuts -arrows- and the Secondary Air Injection Pump Motor - V101- -1- with the bracket. Installing Install in reverse order of removal. Note the following: Tightening Specifications ♦ Refer to ⇒ “3.1 Overview - Secondary Air Injection System”, page 352

3.3 Secondary Air Injection Solenoid Valve - N112- , Removing and Installing

Caution

This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure.

Mandatory Replacement Parts ♦ Seal - Secondary Air Injection Solenoid • The flange must not be separated from the Secondary Air In‐jection (AIR) solenoid valve. • Both the AIR solenoid valve and the flange are replaced com‐pletely. Removing – Remove the air filter housing. Refer to ⇒ “3.2 Air Filter Housing, Removing and Installing”, page 294 .
