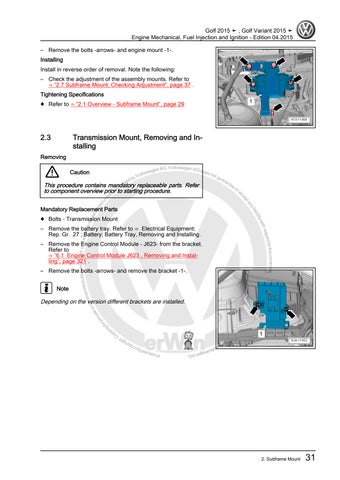

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015 – Remove the bolts -arrows- and engine mount -1-. Installing Install in reverse order of removal. Note the following: – Check the adjustment of the assembly mounts. Refer to ⇒ “2.7 Subframe Mount, Checking Adjustment”, page 37 . Tightening Specifications ♦ Refer to ⇒ “2.1 Overview - Subframe Mount”, page 29
2.3
Transmission Mount, Removing and In‐ stalling
Removing AG. Volkswagen AG d agen oes ksw not l o V gu y b ara d nte ise r o This procedure contains mandatory replaceable parts. Refer eo h t u ra a to starting procedure. to component overview prior c s s
Caution
rrectness of i t to the co nform spec at i h re o n wit in t his
♦ Bolts - Transmission Mount – Remove the battery tray. Refer to ⇒ Electrical Equipment; Rep. Gr. 27 ; Battery; Battery Tray, Removing and Installing . – Remove the Engine Control Module - J623- from the bracket. Refer to ⇒ “6.1 Engine Control Module J623 , Removing and Instal‐ ling”, page 321 . – Remove the bolts -arrows- and remove the bracket -1-. Note
Depending on the version different brackets are installed.
do c um en
es, in part or in w l purpos hole ercia , is n m ot p om c r erm o e t a itte riv du p or nl f e g n
ility ab y li an pt ce
Mandatory Replacement Parts
2. Subframe Mount
31
