Subframe Mount
⇒ “2.1 Overview - Subframe Mount”, page 29 ⇒ “2.2 Engine Mount, Removing and Installing”, page 30 ⇒ “2.3 Transmission Mount, Removing and Installing”, page 31 ⇒ “2.4 Pendulum Support, Removing and Installing”, page 33 ⇒ “2.5 Engine, Supporting in Installed Position”, page 33 ⇒ “2.6 Subframe Mount, Adjusting”, page 36 ⇒ “2.7 Subframe Mount, Checking Adjustment”, page 37
2.1
Overview - Subframe Mount

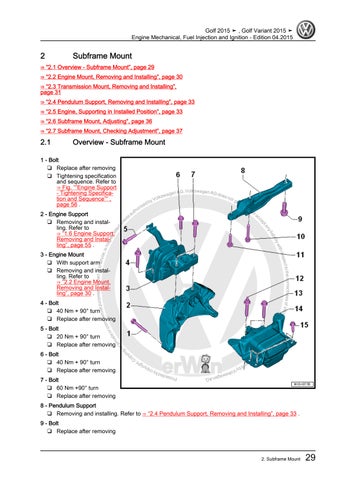

1 - Bolt ❑ Replace after removing ❑ Tightening specification and sequence. Refer to ⇒ Fig. ““Engine Support - Tightening Specifica‐ tion and Sequence”“ , page 56 .
rrectness of i t to the co nf o r m spec atio h re n in wit
es, in part or in w l purpos hole ercia , is n m m ot p o c erm or e t a itte iv r du rp o nl f e ng
ility ab y li an pt ce
2 - Engine Support ❑ Removing and instal‐ ling. Refer to ⇒ “1.6 Engine Support, Removing and Instal‐ ling”, page 55 .
AG. Volkswagen AG d agen oes ksw not l o V gu by ara d e nte is r o eo h ut ra a c s s
3 - Engine Mount ❑ With support arm ❑ Removing and instal‐ ling. Refer to ⇒ “2.2 Engine Mount, Removing and Instal‐ ling”, page 30 .
4 - Bolt ❑ 40 Nm + 90° turn ❑ Replace after removing
agen lksw Vo by
AG.
Prote cted by c o p yri gh t. C op yi
7 - Bolt ❑ 60 Nm +90° turn ❑ Replace after removing
ht rig py Co t.
6 - Bolt ❑ 40 Nm + 90° turn ❑ Replace after removing
thi sd o cu m en
5 - Bolt ❑ 20 Nm + 90° turn ❑ Replace after removing
8 - Pendulum Support ❑ Removing and installing. Refer to ⇒ “2.4 Pendulum Support, Removing and Installing”, page 33 . 9 - Bolt ❑ Replace after removing
