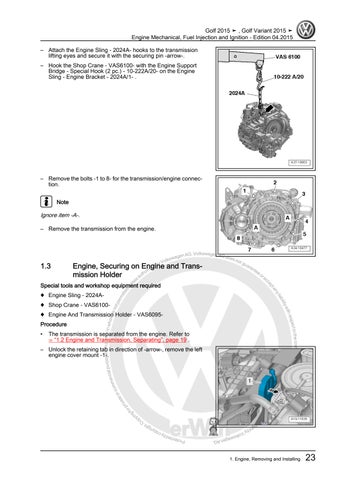

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015 – Attach the Engine Sling - 2024A- hooks to the transmission lifting eyes and secure it with the securing pin -arrow-. – Hook the Shop Crane - VAS6100- with the Engine Support Bridge - Special Hook (2 pc.) - 10-222A/20- on the Engine Sling - Engine Bracket - 2024A/1- .
– Remove the bolts -1 to 8- for the transmission/engine connec‐ tion. Note
Ignore item -A-. – Remove the transmission from the engine.
1.3
n AG. Volkswagen AG do es n wage s k l ot g o yV ua b d ran ir se tee o h t or u ac a ss
Engine, Securing on Engine and Trans‐ mission Holder es, in part or in w l purpos hole ercia , is n m ot p om c r erm o e t a itte riv du p or nl f e g n
ility ab y li an pt ce
Special tools and workshop equipment required ♦ Engine Sling - 2024A-
rrectness of i t to the co nform spec at i h re o n wit in t his
♦ Shop Crane - VAS6100-
♦ Engine And Transmission Holder - VAS6095Procedure •
The transmission is separated from the engine. Refer to ⇒ “1.2 Engine and Transmission, Separating”, page 19 .
– Unlock the retaining tab in direction of -arrow-, remove the left engine cover mount -1-.
do c um en
ht rig py Co t.
agen lksw Vo by
1. Engine, Removing and Installing
23
