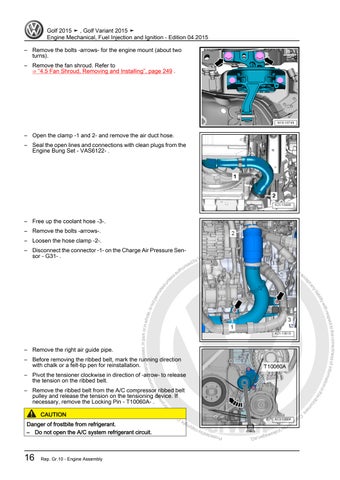

Golf 2015 ➤ , Golf Variant 2015 ➤ Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015 – Remove the bolts -arrows- for the engine mount (about two turns). – Remove the fan shroud. Refer to ⇒ “4.5 Fan Shroud, Removing and Installing”, page 249 .
– Open the clamp -1 and 2- and remove the air duct hose. – Seal the open lines and connections with clean plugs from the Engine Bung Set - VAS6122- .
– Free up the coolant hose -3-. – Remove the bolts -arrows-. – Loosen the hose clamp -2-.
urposes, in part or in wh ole, cial p is n mer m ot p o c erm or e t a itte v i r d p
– Before removing the ribbed belt, mark the running direction with chalk or a felt-tip pen for reinstallation. – Pivot the tensioner clockwise in direction of -arrow- to release the tension on the ribbed belt.
AG.
Rep. Gr.10 - Engine Assembly
agen lksw Vo by
16
Prote cted by c o p yri gh t. C op yi
Danger of frostbite from refrigerant. – Do not open the A/C system refrigerant circuit.
ht rig py Co t.
CAUTION
r fo ng
– Remove the ribbed belt from the A/C compressor ribbed belt pulley and release the tension on the tensioning device. If necessary, remove the Locking Pin - T10060A- .
rrectne s s o f i t to the co n form spec atio h re n wit i n thi sd o c um en
– Remove the right air guide pipe.
AG. Volkswagen AG d agen oes ksw not l o V gu by ara d e nte is r o eo h ut ra a c s s
ility ab y li an pt ce
un le
– Disconnect the connector -1- on the Charge Air Pressure Sen‐ sor - G31- .
