2016 Seat Ibiza Workshop Manual - PDF DOWNLOAD

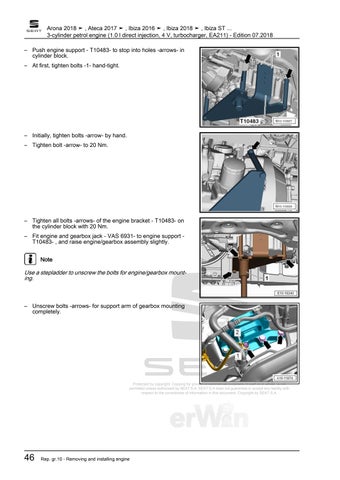

Arona 2018 ➤ , Ateca 2017 ➤ , Ibiza 2016 ➤ , Ibiza 2018 ➤ , Ibiza ST ... 3-cylinder petrol engine (1.0 l direct injection, 4 V, turbocharger, EA211) - Edition 07.2018 – Push engine support - T10483- to stop into holes -arrows- in cylinder block. – At first, tighten bolts -1- hand-tight.

– Initially, tighten bolts -arrow- by hand. – Tighten bolt -arrow- to 20 Nm.

– Tighten all bolts -arrows- of the engine bracket - T10483- on the cylinder block with 20 Nm. – Fit engine and gearbox jack - VAS 6931- to engine support T10483- , and raise engine/gearbox assembly slightly. Note

Use a stepladder to unscrew the bolts for engine/gearbox mount‐ ing.

– Unscrew bolts -arrows- for support arm of gearbox mounting completely.

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.

Rep. gr.10 - Removing and installing engine
