1.3 Securing engine on engine and gearbox support
– Unscrew nut -1-, and lay earth wire -2- to one side. – Unscrew bolts -arrows- from engine mounting by 2 turns.
– Unscrew securing bolts -arrows- on gearbox mounting by ap‐prox. 2 turns.
Vehicles with air conditioner compressor – Remove poly V-belt ⇒ “1.2.2 Removing and installing poly V-belt, vehicles with air conditioner compressor”, page 114 . – Disconnect connector -1- on air conditioning compressor reg‐ulating valve - N280- .
CAUTION
Risk of freezing injury caused by refrigerant. – Do not open refrigerant circuit of air conditioning system.
– Unscrew bolts -arrows- for air conditioning compressor.
Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.
NOTICE
Risk of damage to refrigerant lines from rupture of inner foil. – Never bend refrigerant lines to a radius of less than 100 mm (r < 100 mm).

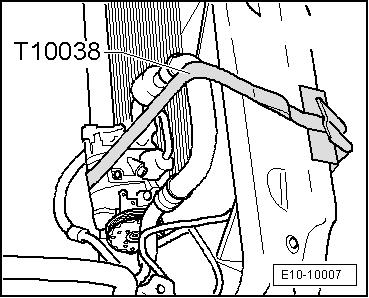

– Take off air conditioner compressor with connected coolant lines and fix with the support tool - T10038- to the right side of the lock carrier.
Continued for all vehicles
– Release and pull off connector -1- on oil level and oil temper‐ature sender - G266- .
– Unscrew bolts -arrow- and remove pendulum support.
Note
The threaded connection -1- must not be loosened.
– If available, unscrew bolts -arrows-, and remove heat shield for right drive shaft. – Remove right and left drive shafts ⇒ Rep. gr. 40 ; Drive shaft; Removing and installing drive shaft . – Unbolt retainer for wiring harness on »radiator end« from cyl‐inder block.

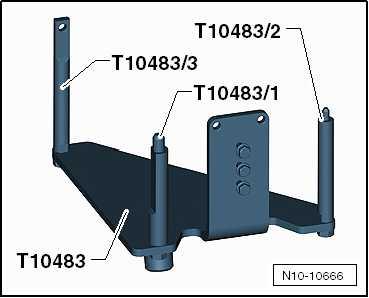

Engine support - T10483- with adapters - T10483-/1, -/2 and -/3are required to lower engine and gearbox.
