1.4 Removing and installing oil pump

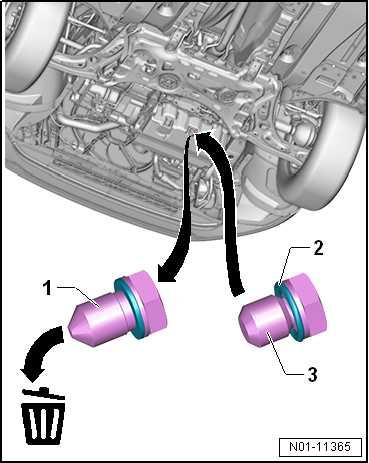

– On first oil change, oil drain plug with captive seal -1- is dis‐posed of. – Fit new oil drain plug -3- with renewable seal -2-. Oil drain plug with renewable seal (all future oil change services)

– Unscrew oil drain plug -2-, and dispose of old seal -3-. – New oil seal -1- can be renewed individually when oil is changed in the future.

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.

Tightening connecting union for oil filter • If the connecting union -2- in the top section of sump -1- is loose, retighten it as described below. Use only the two nuts -3 and 4- for this procedure. • Hexagon nut , qty. 2, ⇒ Electronic Parts Catalogue (ETKA) – Screw nuts -3- and -4- onto connecting union -2-, and counter lock them.

– Tighten connecting union -2- via nut -3-. – Loosen the two nuts and remove them, taking care not to loosen the connecting union. Specified torques

Threaded sleeve

-2Specified torque

50 Nm

1.2 Engine oil:

Note

♦ Risk of catalytic converter damage! ♦ Oil level must not be above “max.” mark.

Oil fill levels, oil specifications: ♦ Ateca ⇒ Maintenance ; Booklet KH1 ; Engine oil: capacities and specifications ♦ Leon 2013 ⇒ Maintenance ; Booklet 501 ; Engine oil: capaci‐ties and specifications ♦ Ibiza 2018 ⇒ Maintenance ; Booklet KJ1 ; Engine oil: capaci‐ties and specifications ♦ Arona ⇒ Maintenance ; Booklet KJ1 ; Engine oil: capacities and specifications ♦ Ibiza 2016 ⇒ Maintenance ; Booklet 603 ; Engine oil: capaci‐ties and specifications ♦ Toledo 2013 ⇒ Maintenance ; Booklet KG1 ; Engine oil: ca‐

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is notpacities and specifications permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.Checking engine oil level: ♦ Ateca ⇒ Maintenance ; Booklet KH1 ; Engine oil level: check ♦ Leon 2013 ⇒ Maintenance ; Booklet 501 ; Engine oil level: check ♦ Ibiza 2018 ⇒ Maintenance ; Booklet KJ1 ; Engine oil level: check ♦ Arona ⇒ Maintenance ; Booklet KJ1 ; Engine oil level: check ♦ Ibiza 2016 ⇒ Maintenance ; Booklet 603 ; Engine oil level: check ♦ Toledo 2013 ⇒ Maintenance ; Booklet KG1 ; Engine oil level: check

1.3 Removing and installing sump

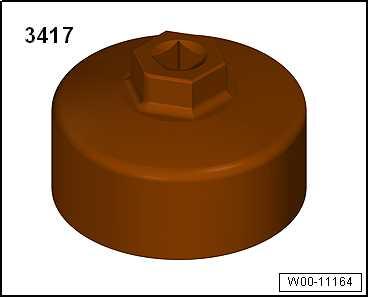

Special tools and workshop equipment required ♦ Oil filter tool - 3417-
