1.7 Align end exhaust pipes

♦ Torque wrench - V.A.G 1331-

Removing

CAUTION

Risk of accident caused by high weight of silencers. – Seek help from a second a mechanic for the following work.

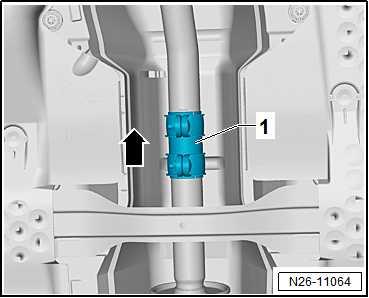

Separating point without clamp – Separate rear silencer from front silencer ⇒ “1.2.3 Separating exhaust pipes from silencers, Toledo 2013, Ibiza 2016”, page 443 . Separating point with clamp – Loosen clamp -1- between catalytic converter and front si‐lencer, and push it in direction of travel -arrow-. – Loosen clamp between front and rear silencer, and push it in opposite direction of travel.

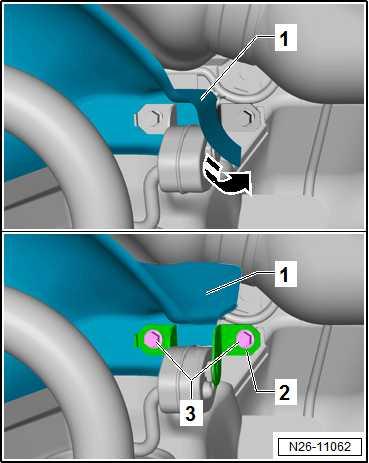

– Bend heat shield -1- in direction of -arrow-.

• Bracket -2- needs to be guided past heat shield -1-. – Unscrew bolts -3- from bracket -2-. Guide bracket -2- past heat shield -1-.

– Detach front silencer, and guide it out. Installing Install in reverse order of removal, observing the following: Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with – Align exhaust system free of stress ⇒ “1.4 Aligning exhaust system free of stress”, page 452 . respect to the correctness of information in this document. Copyright by SEAT S.A. – Note installation position of clamps ⇒ “1.6 Installation position of clamp”, page 453 . Specified torques • Securing bolts for bracket ⇒ “1.1.3 Assembly overview - silencer, Toledo 2013, Ibiza 2016”, page 439 • Bolts for clamp ⇒ page 454
