2.2 Removing and installing motor mounting

2 Assembly mountings

⇒ “2.1 Assembly overview - assembly mountings”, page 67 ⇒ “2.2 Removing and installing motor mounting”, page 73 ⇒ “2.3 Removing and installing gearbox mounting”, page 77 ⇒ “2.4 Removing and installing pendulum support”, page 84 ⇒ “2.5 Supporting engine in installation position”, page 87 ⇒ “2.6 Assembly mountings - adjusting, Ateca, Leon 2013, Ibiza 2018, Arona”, page 106 ⇒ “2.7 Assembly mounting setting - checking, Ateca, Leon 2013, Ibiza 2018, Arona”, page 108

2.1 Assembly overview - assembly mount‐ings

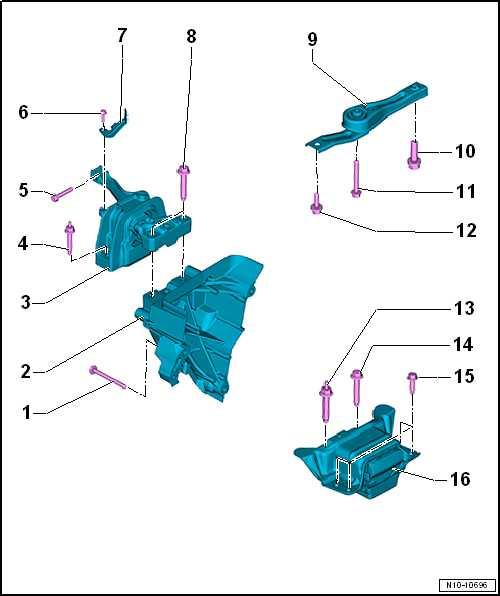

⇒ “2.1.1 Assembly overview - assembly mountings, Ateca, Leon 2013”, page 67 ⇒ “2.1.2 Assembly overview - assembly mountings, Ibiza 2018, Arona”, page 70 ⇒ “2.1.3 Assembly overview - assembly mountings, Toledo 2013, Ibiza 2016”, page 72 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A. 2.1.1 Assembly overview - assembly mountings, Ateca, Leon 2013

1 - Bolt ❑ Renew after removal ❑ Tightening sequence ⇒ page 69 . 2 - Engine support ❑ Specified torque and tightening sequence ⇒ page 69 ❑ Removing and installing ⇒ “1.5.1 Engine sup‐port- removing and in‐stalling, Leon 2013, Ibi‐za 2018, Arona”, page 122 ❑ Separate the engine support to free some space ⇒ page 124 3 - Engine mounting ❑ With support arm ❑ Do not separate engine mounting and support arm ❑ Removing and installing ⇒ “2.2.1 Engine mount‐ing - removing and in‐stalling, Ateca, Leon 2013”, page 73 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not4 - Bolt permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.❑ Renew after removal ❑ 40 Nm +90°

5 - Bolt ❑ Renew after removal ❑ 20 Nm +90°

6 - Bolt ❑ Depending on version ❑ 8 Nm

7 - Support ❑ Depending on version 8 - Bolt ❑ Renew after removal ❑ 60 Nm +90°

9 - Pendulum support ❑ Removing and installing ⇒ “2.4.1 Removing and positioning pendulum support, Ateca, Leon 2013”, page 84 10 - Bolt ❑ Renew after removal ❑ Specified torque and tightening sequence ⇒ page 69 11 - Bolt ❑ Renew after removal ❑ Specified torque and tightening sequence ⇒ page 69 12 - Bolts ❑ Renew after removal

❑ Specified torque and tightening sequence ⇒ page 69 13 - Bolt ❑ Renew after removal ❑ 60 Nm +90°

14 - Bolt ❑ 2 off ❑ Renew after removal ❑ 60 Nm +90°

15 - Bolt ❑ Renew after removal ❑ 50 Nm +90°

16 - Gearbox mounting ❑ With support arm ❑ Removing and installing ⇒ “2.3.1 Engine mounting - removing and installing, Ateca, Leon 2013”, page 77

Engine support - specified torque and tightening sequence – Tighten bolts in the sequence shown:

Stage Bolts Specified torque/turning further angle 1. -1 … 3- 7 Nm 2. -1 … 3- 40 Nm 3. -1 … 3- Turn 90° further

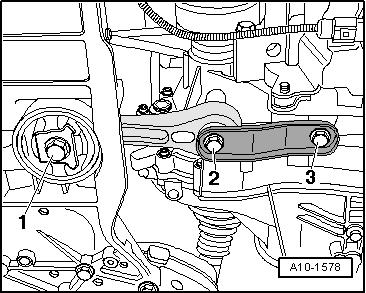

Pendulum support - specified torque and tightening sequence

Note

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.

Renew bolts that are tightened with specified further tightening angle.

– Tighten bolts in stages in the sequence shown. Specified torques

Stage Bolts Specified torque/turning further angle 1. -2- and -3- 50 Nm 2. -1- 130 Nm 3. -1-, -2- and -3Turn 90° further

2.1.2 Assembly overview - assembly mountings, Ibiza 2018, Arona

1 - Bolt ❑ 3 off ❑ Renew after removal ❑ Specified torque and tightening sequence ⇒ page 71 2 - Engine support ❑ Removing and installing ⇒ “1.5.1 Engine sup‐port- removing and in‐stalling, Leon 2013, Ibi‐za 2018, Arona”, page 122 ❑ Specified torque and tightening sequence ⇒ page 71 ❑ Separate the engine support to free some space ⇒ page 124 3 - Engine mounting ❑ Removing and installing ⇒ “2.2.2 Removing and installing engine mount‐ing, Ibiza 2018, Arona”, page 74 4 - Bolt ❑ Renew after removal ❑ 40 Nm +90°

5 - Bolt ❑ Renew after removal ❑ 20 Nm +90°

6 - Bolt ❑ Renew after removal ❑ 60 Nm +90°

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.

7 - Pendulum support ❑ Removing and installing ⇒ “2.4.2 Removing and installing pendulum support, Ibiza 2018, Arona”, page 85

8 - Bolt ❑ Renew after removal ❑ Specified torque and tightening sequence ⇒ page 71 9 - Bolt ❑ Renew after removal ❑ Specified torque and tightening sequence ⇒ page 71 10 - Bolt ❑ Renew after removal ❑ Specified torque and tightening sequence ⇒ page 71 11 - Bolt ❑ Renew after removal ❑ 60 Nm +90°
