1.4 Aligning exhaust system free of stress

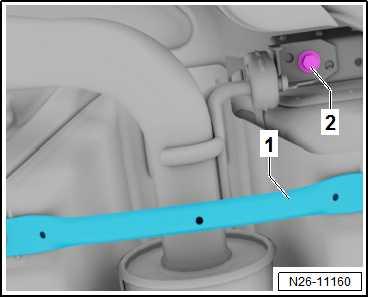

– Remove bolt -2- on mounting. – Detach front silencer, and guide it out. Installing Install in reverse order of removal, observing the following: – Align exhaust system free of stress ⇒ “1.4 Aligning exhaust system free of stress”, page 452 . – Note installation position of clamps ⇒ Fig. ““Installation position of rear clamp”“ , page 437 . Specified torques ♦ Securing bolts for bracket ⇒ “1.1.1 Assembly overview - silencer, Ateca, Leon 2013”, page 435 ♦ Bolts for clamp ⇒ Item 6 (page 436) ♦ Nuts at the rear of the tunnel bridge ⇒ Body Repairs; Rep. gr. 66 ; Underbody panelling; removing and installing the tunnel bridge

1.3.2 Removing and installing front silencer, Ibiza 2018, Arona

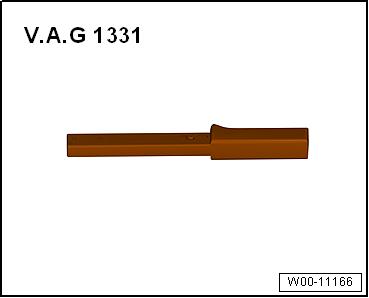

Special tools and workshop equipment required ♦ Torque wrench - V.A.G 1331-

Removing – If fitted, remove underbody cladding ⇒ General body repairs, exterior; Rep. gr. 66 ; Underbody cladding; Overview of fitting locations - underbody trim panels . Protected by copyright. Copying for private or commercial purposes, in part or in whole, is notSeparating point without clamppermitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.– Separate front silencer from the rear silencer ⇒ “1.2.2 Separating exhaust pipes from silencers, Ibiza 2018, Arona”, page 441 . • Separating point ⇒ Item 6 (page 438)
