4.4 Separating new conrod

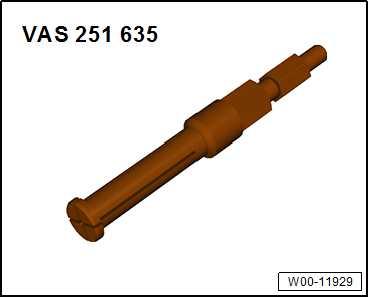

♦ Internal puller - VAS 251 635-

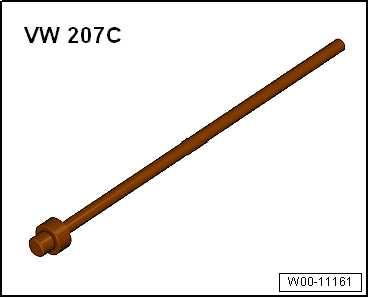

♦ Drift - VW 207 C-

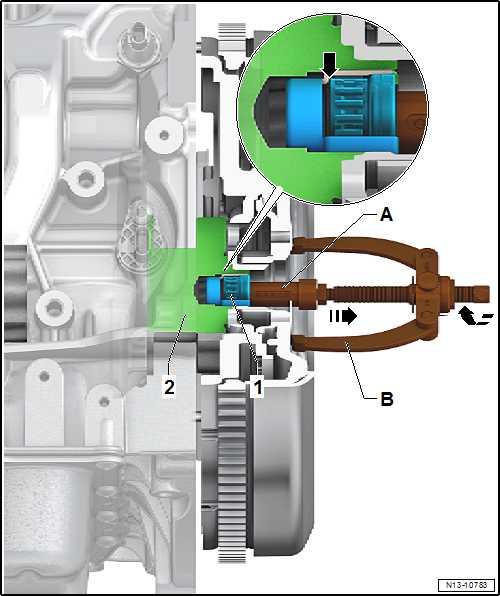

Removing – Remove gearbox ⇒ Rep. gr. 34 ; Removing and installing gearbox; Removing gearbox . Requirement: • The front edges of the internal puller must not be chipped. Pulling out needle roller bearing – Pull out needle bearing -1- with internal puller - VAS 251 635-A- and counter support, e.g. KUKKO 22-1 - VAS 251 621-B- from crankshaft -2-.

– The internal puller must be positioned behind the needle roller and cage assembly -arrow-.
