4.2 Removing and installing intake manifold

11 - Air filter upper part ❑ Remove dirt, leaves and salt residues

12 - Bump stop ❑ check for damage and renew if necessary ❑ Make sure it is firmly seated after installation 13 - Air filter lower part ❑ Remove dirt, leaves and salt residues

14 - Bolt ❑ 9 off ❑ 1.5 Nm

15 - Water drain hose ❑ Cleaning 16 - Filter

17 - O-ring ❑ Renew if damaged 18 - Water drain hose ❑ With valve ❑ Cleaning 19 - Bolt ❑ 2 off ❑ 2 Nm

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.

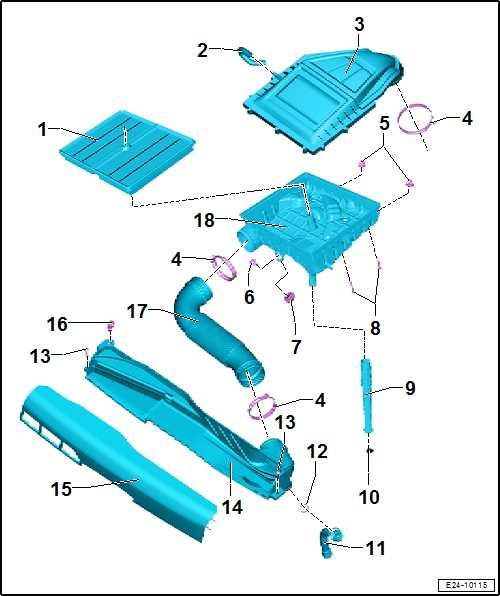

3.1.2 Assembly overview - air filter housing, Ibiza 2018, Arona

1 - Air filter element ❑ Use only genuine air fil‐ter elements ⇒ Elec‐tronic Parts Catalogue ❑ For change intervals re‐fer to ⇒ Maintenance ta‐bles ❑ Removing and installing ⇒ Maintenance ; Book‐let KJ1

2 - Hose ❑ For crankcase ventila‐tion.

3 - Air filter upper part ❑ Remove dirt, leaves and salt residues

4 - Clamp ❑ When installing, ensure correct seating of spring-type clip on chamfer of hose

5 - Bump stop ❑ check for damage and renew if necessary ❑ Make sure it is firmly seated after installation

6 - Bolt ❑ 5 Nm

7 - Bump stop ❑ check for damage and renew if necessary ❑ Make sure it is firmly seated after installation

8 - Bolt ❑ 9 off ❑ 1.5 Nm

9 - Water drain hose

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not❑ Cleaningpermitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with 10 - Filter respect to the correctness of information in this document. Copyright by SEAT S.A.

11 - Water drain hose ❑ Cleaning 12 - O-ring ❑ Renew if damaged 13 - Bolt ❑ 2 off ❑ 2 Nm

14 - Air duct (bottom section) ❑ On lock carrier
