2.4 Removing and installing pendulum support

♦ Torque wrench - V.A.G 1331-

♦ Torque wrench - V.A.G 1332-

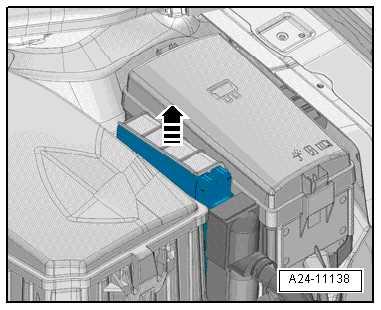

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability withRemoving respect to the correctness of information in this document. Copyright by SEAT S.A. – Disconnect earth wire from battery terminal ⇒ Electrical sys‐tem; Rep. gr. 27 ; Battery, Disconnecting and connecting battery . – Remove battery tray ⇒ Electrical system; Rep. gr. 27 ; battery; battery tray: remove and install . Ateca

– Support engine in its installation position ⇒ “2.5.2 Supporting engine in installation position, Leon 2013”, page 91 . Leon 2013

– Support engine in its installation position ⇒ “2.5.2 Supporting engine in installation position, Leon 2013”, page 91 . Continued for all vehicles:

– Remove engine control unit ⇒ “6 Engine (motor) control unit”, page 412 .

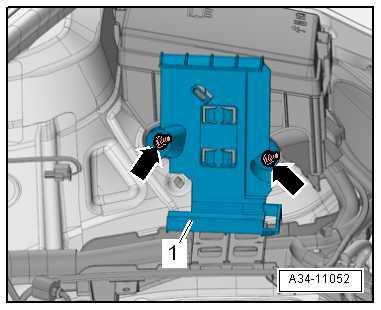

– Unscrew nuts -arrows- and remove bracket -1-.

Note

Different types of brackets are fitted depending on version.

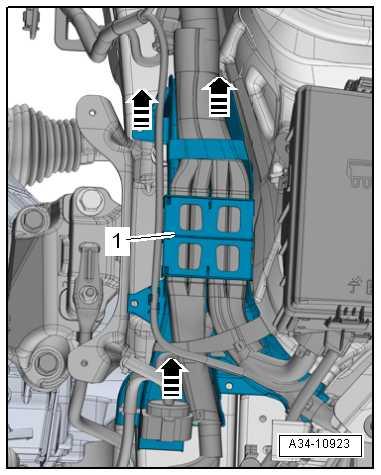

– Unclip wire guide -1- upwards -arrows-, and push it slightly to one side.

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.

– Unscrew bolts -arrows- and remove gearbox mounting -1-. Installing Install in reverse order of removal, observing the following:

Note

♦ Risk of damage to threads by starting bolts at an angle. ♦ Renew bolts that are tightened with turning further angle after each removal.

– Lift gearbox with spindle of support bracket until gearbox sup‐port makes contact with support arm of gearbox mounting. – Checking adjustment of assembly mountings ⇒ “2.7 Assembly mounting setting - checking, Ateca, Leon 2013, Ibiza 2018, Arona”, page 108 . – Install engine control unit ⇒ “6 Engine (motor) control unit”, page 412 . – Install battery tray ⇒ Electrical system; Rep. gr. 27 ; Battery; Removing and installing battery . – Connect earth wire to battery terminal ⇒ Electrical system; Rep. gr. 27 ; Battery, Disconnecting and connecting battery . – Detach support bracket - 10 - 222 A- from engine. Specified torques ♦ ⇒ “2.1.1 Assembly overview - assembly mountings, Ateca, Leon 2013”, page 67 ♦ ⇒ Electrical system; Rep. gr. 27 ; Battery; Removing and installing battery tray

2.3.2 Removing and installing gearbox mounting, Ibiza 2018, Arona

Special tools and workshop equipment required ♦ Torque wrench - V.A.G 1331-

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.
