2.7 Assembly mounting setting - checking, Ateca, Leon 2013, Ibiza 2018, Arona

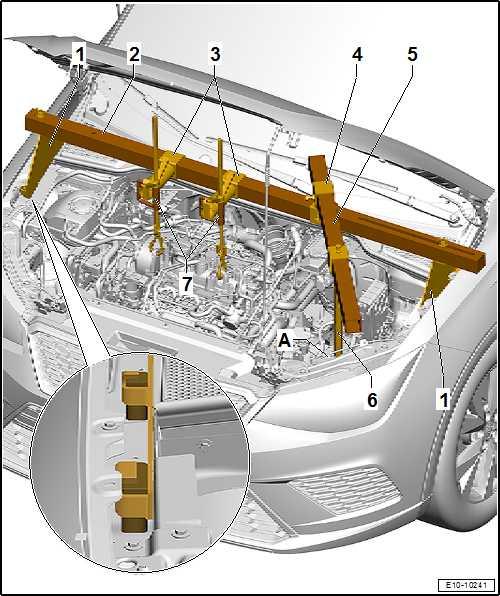

– Connect, fit and tighten the spindle engine support supple‐ment set - T40093 /3- -6- to the adapter - T40091/3- -4- over the square section tube - T40091/1- -5-. – Hook the karabiners on the spindles - 10 - 222 A /10- -7- into the engine lifting eyes. – Take up weight of engine/gearbox assembly and support bracket on spindles . Specified torques ♦ Securing bolts for air filter housing ⇒ “3.1.2 Assembly overview - air filter housing, Ibiza 2018, Ar‐ona”, page 395 ♦ ⇒ “2.1 Assembly overview - charge air system”, page 363

2.5.5 Supporting engine in installation posi‐tion, Ibiza 2016

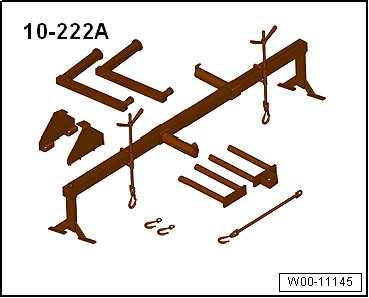

Special tools and workshop equipment required ♦ Support bracket - 10 - 222 A-

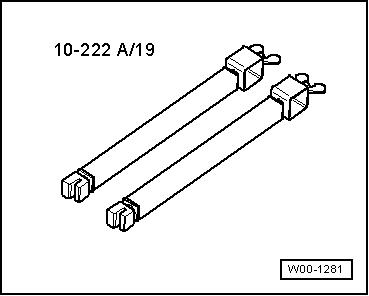

♦ Adapter - 10-222A/19-
