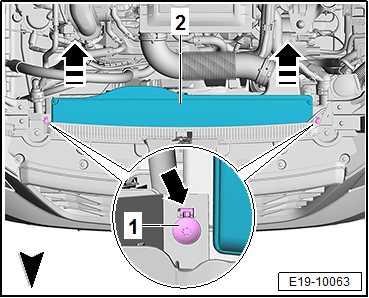

4.7 Removing and installing radiator blind

– Release hose clip -1-, and pull air hose -2- off air filter housing. – Unscrew bolts -3- on both sides.

– Release locking lugs -arrow-, unclip air hose -4- from the front end and remove on both sides in -direction of the arrow-.

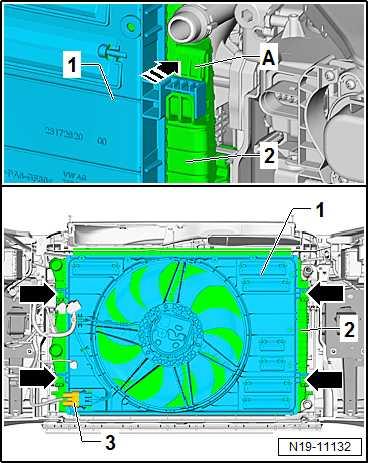

– Separate electrical connector -3- on radiator fan. – Simultaneously press locking tabs on left and right of radiator cowl -A- in direction of -arrow-.

– Pull radiator fan cowling upwards and remove from radiator -arrows-.

– Carefully remove radiator cowl downwards. Installing Install in reverse order of removal, observing the following: – Electrical connections and routing ⇒ Current flow diagrams, Electrical fault finding and Fitting locations. Specified torques ♦ ⇒ “3.1.1 Assembly overview - air filter housing, Ateca, Leon 2013”, page 393

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.

4.5.2 Removing and positioning the radiator cowl, Arona, Ibiza 2018

Special tools and workshop equipment required ♦ Drip tray for workshop hoist - VAS 6208-
