1.4 Removing and installing Hall sender

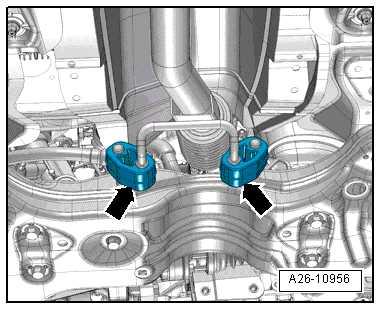

– Detach catalytic converter with front exhaust pipe from rubber mountings -arrows-.

– Loosen clamp -arrow-, and push it to rear. – Detach catalytic converter with front exhaust pipe. Installing Install in reverse order of removal, observing the following:

Note

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.

♦ Renew seal and self-locking nuts. ♦ Lubricate exhaust manifold studs with high-temperature paste. For high-temperature paste refer to ⇒ Electronic Parts Catalogue (ETKA)

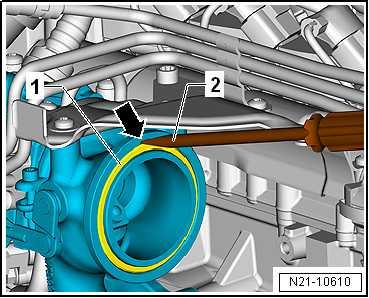

– Insert screwdriver -2- into groove -arrow- on turbocharger, and lever out seal -1-.

– Aligning exhaust system free of stress ⇒ “1.4 Aligning exhaust system free of stress”, page 452 Specified torques ♦ Specified torques and tightening sequence for catalytic con‐verter ⇒ Fig. ““Installing catalytic converter - specified torque and tightening sequence”“ , page 459 ♦ ⇒ “8.1.2 Assembly overview - lambda probe, Toledo 2013, Ibiza 2016”, page 430 ♦ ⇒ “1.6 Installation position of clamp”, page 453

2.3 Removing and installing particulate filter

Note

♦ The removal and installation procedure for the particulate filter is the same as that for the catalytic converter. Therefore, only removal and installation of the catalytic converter is described ⇒ “2.2 Removing and installing catalytic converter”, page 459 . ♦ If the particulate filter was renewed, the ash load must be reset using ⇒ Vehicle diagnostic tester.
