4.3 Removing and installing throttle valve module GX3

15 - Cover ❑ For air duct

16 - Front bonnet rod

17 - Air intake hose ❑ With installation position 18 - Air filter lower part ❑ Remove dirt, leaves and salt residues

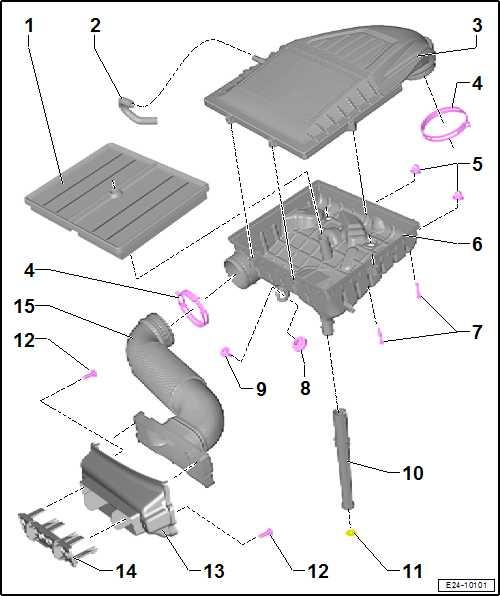

3.1.3 Assembly overview - air filter housing, Toledo 2013, Ibiza 2016

1 - Air filter element ❑ Use only genuine air fil‐ter elements ⇒ Elec‐tronic parts catalogue (ETKA) . ❑ For change intervals re‐fer to ⇒ Maintenance ta‐bles ❑ Removing and installing Ibiza 2016 ⇒ Mainte‐nance ; Booklet 603 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not ❑ permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.Removing and installing Toledo 2013 ⇒ Mainte‐nance ; Booklet KG1

2 - Hose ❑ For crankcase ventila‐tion.

3 - Air filter upper part ❑ Remove dirt, leaves and salt residues

4 - Clamp ❑ When installing, ensure correct seating of spring-type clip on chamfer of hose

5 - Bump stop ❑ check for damage and renew if necessary ❑ Make sure it is firmly seated after installation

6 - Air filter lower part ❑ Remove dirt, leaves and salt residues

7 - Bolt ❑ 9 off ❑ 1.5 Nm

8 - Bump stop ❑ check for damage and renew if necessary ❑ Make sure it is firmly seated after installation 9 - Bolt ❑ 5 Nm
