1.2 Assembly overview - camshaft housing

♦ Torque wrench - V.A.G 1331-

♦ Socket wrench - T10545-

Removing – Remove sump ⇒ “1.3 Removing and installing sump”, page 237 . – Turn crankshaft via vibration damper securing bolt in direction of engine rotation until the respective bolt is accessible.

Note

♦Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A. The crank web of the respective cylinder must be positioned so that the socket - T10545- can be inserted in the pressure relief valve as close to vertical as possible. ♦ Furthermore, the corners of the socket - T10545- and of the pressure relief valve must engage well.

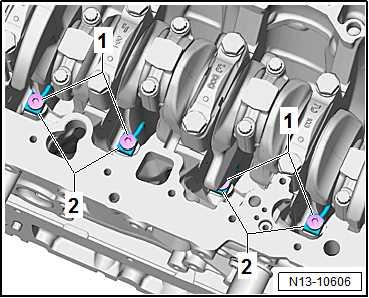

– Unscrew pressure relief valve -1- using hexagon bit - T10545- . – Remove oil spray jets -2-. Installing

NOTICE

Risk of damage to oil spray jets caused by deformation. – Do not bend oil spray jets.

1 - Bolt with pressure relief valve, 27 Nm 2 - Oil spray jet (for cooling of piston) • Installation position: align leading edge of oil spray jet arrow with machined surface of cylinder block. – Install oil pan ⇒ “1.3 Removing and installing sump”, page 237 . – Install noise insulation ⇒ General body repairs, exterior; Rep. gr. 66 ; Noise insulation; Assembly overview – noise insula‐tion .

– Installing noise insulation: Toledo 2013, Ibiza 2016 ⇒ General body works, exterior; Rep. gr. 50 ; Underbody protection; As‐sembly overview: underbody protection

4.7 Setting piston to TDC position

Special tools and workshop equipment required ♦ Locating bolt - T10340-

Procedure

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.

Setting piston from cylinder no. 1 to TDC position ⇒ page 155 Setting piston from cylinder no. 1 to TDC position for repair work on toothed belt drive and for setting valve timing ⇒ page 156 Setting piston from cylinder no. 1 to TDC position Toledo 2013, Ibiza 2016

– Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 50 ; Underbody protection; Underbody protection –assembly overview . Ateca, Leon 2013, Ibiza 23018, Arona

– Remove nose insulation ⇒ General body repairs, exterior; Rep. gr. 66 ; Noise insulation; Assembly overview - noise in‐sulation .

Continued for all vehicles

– Place a cloth underneath to catch any engine oil which may drain out.

– Lower vehicle onto floor.

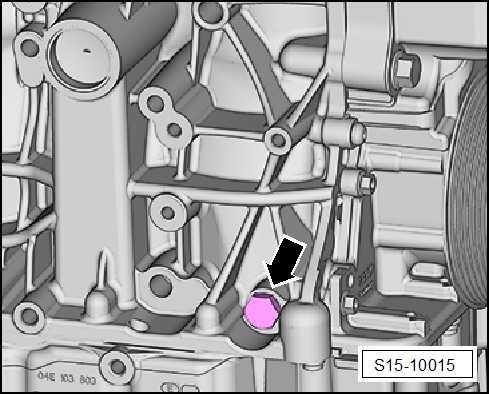

– Unscrew plug -arrow- from back of cylinder block.
