2.6 Assembly mountings - adjusting, Ateca, Leon 2013, Ibiza 2018, Arona

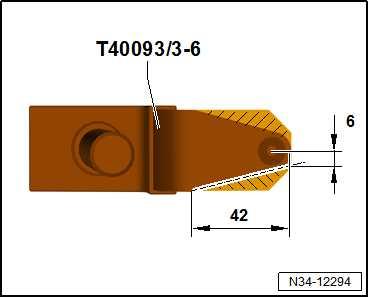

Check adapters - T40093/3-6- and modify as necessary – If necessary, cut off the marked area. – Round off front edges. – Protect adapter against corrosion. – Then, mark adapters - T40093/3-6- as -T40093/3-6A- . At a later point, support bracket - 10-222 A- will be fitted onto longitudinal members with adapters - T40093/3-6A- . • To prevent damage to longitudinal members, cover front area of adapters - T40093/3-6A- with textile-reinforced adhesive tape ⇒ Electronic Parts Catalogue (ETKA chemical substan‐ces) .

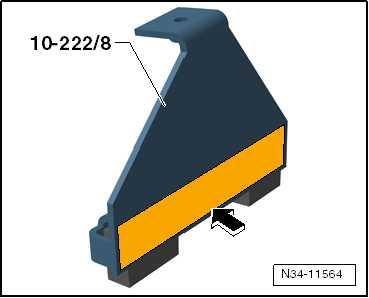

• To not damage the edges of the wings, affix adhesive tape to both sides of the adapter - 10 - 222 A /8- to the lower section, -arrow- ⇒ Electronic parts catalogue (ETKA) .

Procedure

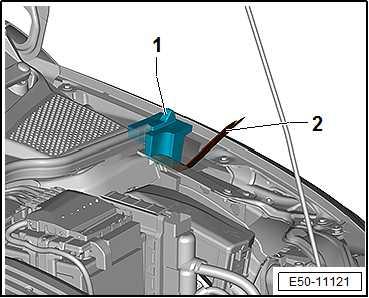

– Remove air filter housing ⇒ “3.2 Removing and installing air filter housing”, page 397 . – Remove air intake pipe ⇒ “2.5 Removing and installing air pipe ”, page 368 . – Remove the filler piece -1- on both sides with the removal lever - 80 200- -2-.

– Slide the adapter - T40091/3- -4- and adapters - 10 - 222 A / 3- -3- over the support bracket - 10 - 222 A- -2-. – Screw on support bracket - 10-222 A- -2- to adapters - 10 222 A /8- -1-.

– Insert support bracket - 10 - 222 A- -4- and the adapters - 10 - 222 A /8- -1- on both vehicles sides between the wing mount‐ing edge and the mounting plate for wing located underneath.

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.

– If available, pull off the lines out of the front side of the right longitudinal member -arrow-. – Place adapter - T40093/3-6A- on left longitudinal member right behind filler pipe for washer fluid reservoir -B-. – If fitted, pull off electrical lines in front area of web on left lon‐gitudinal member. – Bolt -A- must remain behind the rim -arrow-.

– Bolt the spindle of the engine support supplement set T40093 /3- -6- to the adapter - T40093/3-6- -A-.

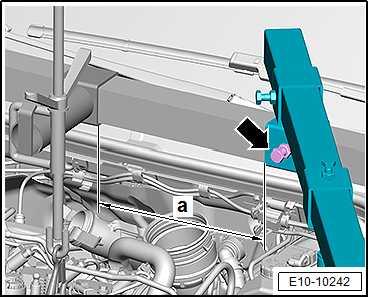

• In order to correctly affix the adapter - T40091/3- -4-, before the bolt -arrow- is tightened, the dimension -a = approx. 240 mm- must be used as a basis and then the bolt tightened.
