2.4 Checking charge air system for leaks

♦ Torque wrench - VAS 6854-

♦ Ratchet insert 1/4" - VAS 6234-

Removing – Remove air filter housing ⇒ page 397 . – Press release tabs on both sides, and disconnect hose -2- for activated charcoal filter.

Note

Risk of chemical damage to the coolant pump gasket caused by oil entering between the coolant pump and the cylinder head.

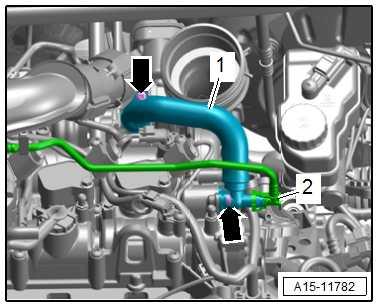

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not– Cover coolant pump with a cloth. permitted unless authorised by SEAT S.A. SEAT S.A does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by SEAT S.A.– Unscrew bolts -arrows-, and detach crankcase breather hose -1-.
