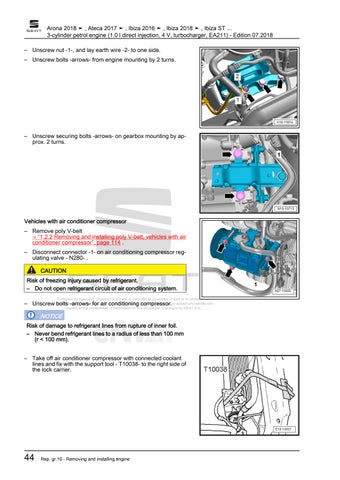

Arona 2018 ➤ , Ateca 2017 ➤ , Ibiza 2016 ➤ , Ibiza 2018 ➤ , Ibiza ST ... 3-cylinder petrol engine (1.0 l direct injection, 4 V, turbocharger, EA211) - Edition 07.2018 – Unscrew nut -1-, and lay earth wire -2- to one side. – Unscrew bolts -arrows- from engine mounting by 2 turns.
– Unscrew securing bolts -arrows- on gearbox mounting by ap‐ prox. 2 turns.
Vehicles with air conditioner compressor – Remove poly V-belt ⇒ “1.2.2 Removing and installing poly V-belt, vehicles with air conditioner compressor”, page 114 . – Disconnect connector -1- on air conditioning compressor reg‐ ulating valve - N280- . CAUTION Risk of freezing injury caused by refrigerant. – Do not open refrigerant circuit of air conditioning system. Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
authorised S.A. SEAT S.A does not guarantee or accept any liability with – Unscrewpermitted bolts unless -arrowsfor byairSEAT conditioning compressor. respect to the correctness of information in this document. Copyright by SEAT S.A.
NOTICE Risk of damage to refrigerant lines from rupture of inner foil. – Never bend refrigerant lines to a radius of less than 100 mm (r < 100 mm). – Take off air conditioner compressor with connected coolant lines and fix with the support tool - T10038- to the right side of the lock carrier.
44
Rep. gr.10 - Removing and installing engine
