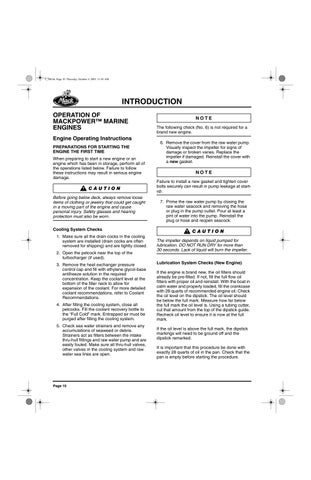

INTRODUCTION OPERATION OF MACKPOWER™ MARINE ENGINES Engine Operating Instructions PREPARATIONS FOR STARTING THE ENGINE THE FIRST TIME When preparing to start a new engine or an engine which has been in storage, perform all of the operations listed below. Failure to follow these instructions may result in serious engine damage.
Before going below deck, always remove loose items of clothing or jewelry that could get caught in a moving part of the engine and cause personal injury. Safety glasses and hearing protection must also be worn.
The following check (No. 6) is not required for a brand new engine. 6. Remove the cover from the raw water pump. Visually inspect the impeller for signs of damage or broken vanes. Replace the impeller if damaged. Reinstall the cover with a new gasket.
Failure to install a new gasket and tighten cover bolts securely can result in pump leakage at startup. 7. Prime the raw water pump by closing the raw water seacock and removing the hose or plug in the pump outlet. Pour at least a pint of water into the pump. Reinstall the plug or hose and reopen seacock.
Cooling System Checks 1. Make sure all the drain cocks in the cooling system are installed (drain cocks are often removed for shipping) and are tightly closed. 2. Open the petcock near the top of the turbocharger (if used). 3. Remove the heat exchanger pressure control cap and fill with ethylene glycol-base antifreeze solution in the required concentration. Keep the coolant level at the bottom of the filler neck to allow for expansion of the coolant. For more detailed coolant recommendations, refer to Coolant Recommendations. 4. After filling the cooling system, close all petcocks. Fill the coolant recovery bottle to the “Full Cold” mark. Entrapped air must be purged after filling the cooling system. 5. Check sea water strainers and remove any accumulations of seaweed or debris. Strainers act as filters between the intake thru-hull fittings and raw water pump and are easily fouled. Make sure all thru-hull valves, other valves in the cooling system and raw water sea lines are open.
Page 10
The impeller depends on liquid pumped for lubrication. DO NOT RUN DRY for more than 30 seconds. Lack of liquid will burn the impeller. Lubrication System Checks (New Engine) If the engine is brand new, the oil filters should already be pre-filled. If not, fill the full flow oil filters with proper oil and reinstall. With the boat in calm water and properly loaded, fill the crankcase with 28 quarts of recommended engine oil. Check the oil level on the dipstick. The oil level should be below the full mark. Measure how far below the full mark the oil level is. Using a tubing cutter, cut that amount from the top of the dipstick guide. Recheck oil level to ensure it is now at the full mark. If the oil level is above the full mark, the dipstick markings will need to be ground off and the dipstick remarked. It is important that this procedure be done with exactly 28 quarts of oil in the pan. Check that the pan is empty before starting the procedure.
