REPAIR INSTRUCTIONS

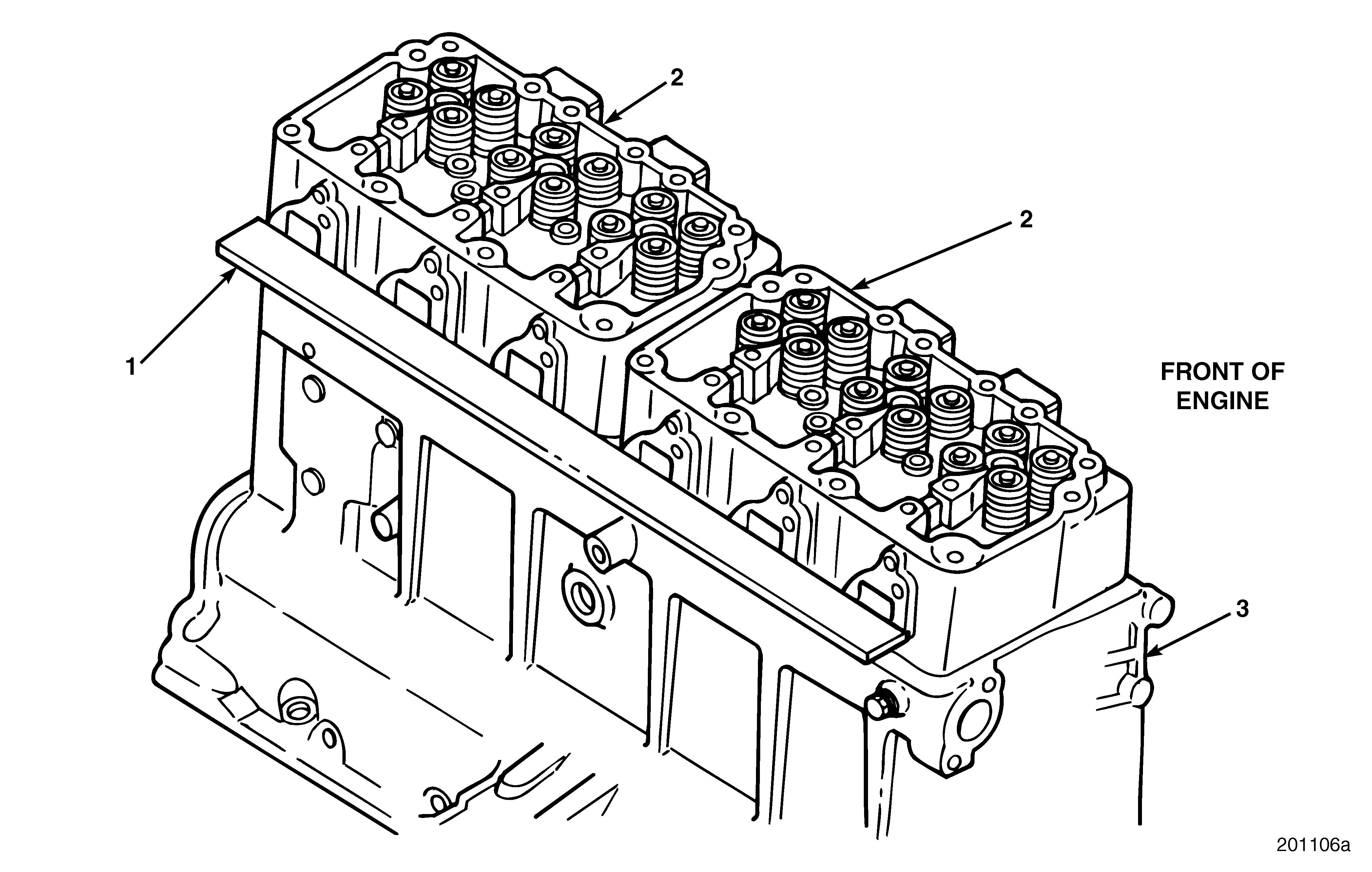

Refer to Figure 304.

6.Torque all head mounting capscrews in three stages to the specified torque.

a.Torque all head mounting capscrews in sequence to 50 lb-ft (68 N•m) using torque wrench J 24407, or equivalent.

b.Torque all head mounting capscrews in sequence to 125 lb-ft (170 N•m) using torque wrench J 24407, or equivalent.

c.Torque all head mounting capscrews in sequence to final torque value of 195–215 lb-ft (264–292 N•m) using torque wrench J 24407, or equivalent.

7.Perform the engine run-in procedure, bringing temperatures up to the normal operating range.

8.After completing the run-in procedure, retorque the cylinder head capscrews in sequence, breaking each loose one at a time and then bringing it up to the specified torque.
