REPAIR INSTRUCTIONS

Flywheel Removal

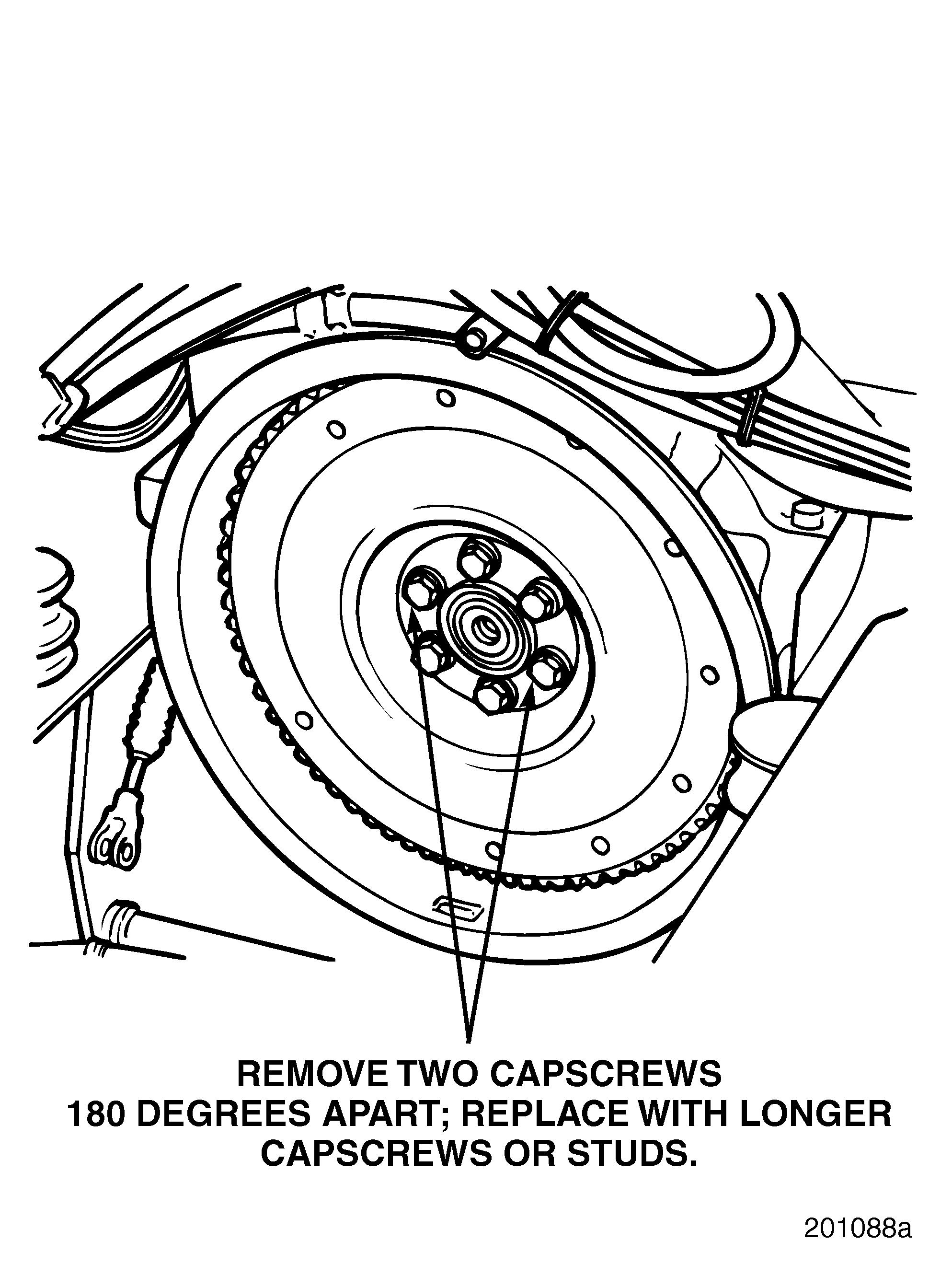

Refer to Figure 151.

1.With engine stand rotated so that engine is inverted (crankshaft horizontal), loosen all six flywheel retaining capscrews.

2.Remove two of the flywheel retaining capscrews that are opposite each other. Install two longer capscrews or studs to allow flywheel to be safely removed from the crankshaft.

3.Remove remaining capscrews.

4.Carefully tap flywheel by alternating from side to side to work it off the aligning dowel pins.

The flywheel is heavy. Lifting the flywheel requires the help of an assistant or the use of a suitable lifting device (J 25026-A, or equivalent). Attempting to lift a flywheel without such assistance may result in severe personal injury.

5.Support the flywheel and remove two guide capscrews or studs.

6.Using a suitable lifting device such as J 25026-A, or an assistant, remove the flywheel.

Flywheel Housing Removal

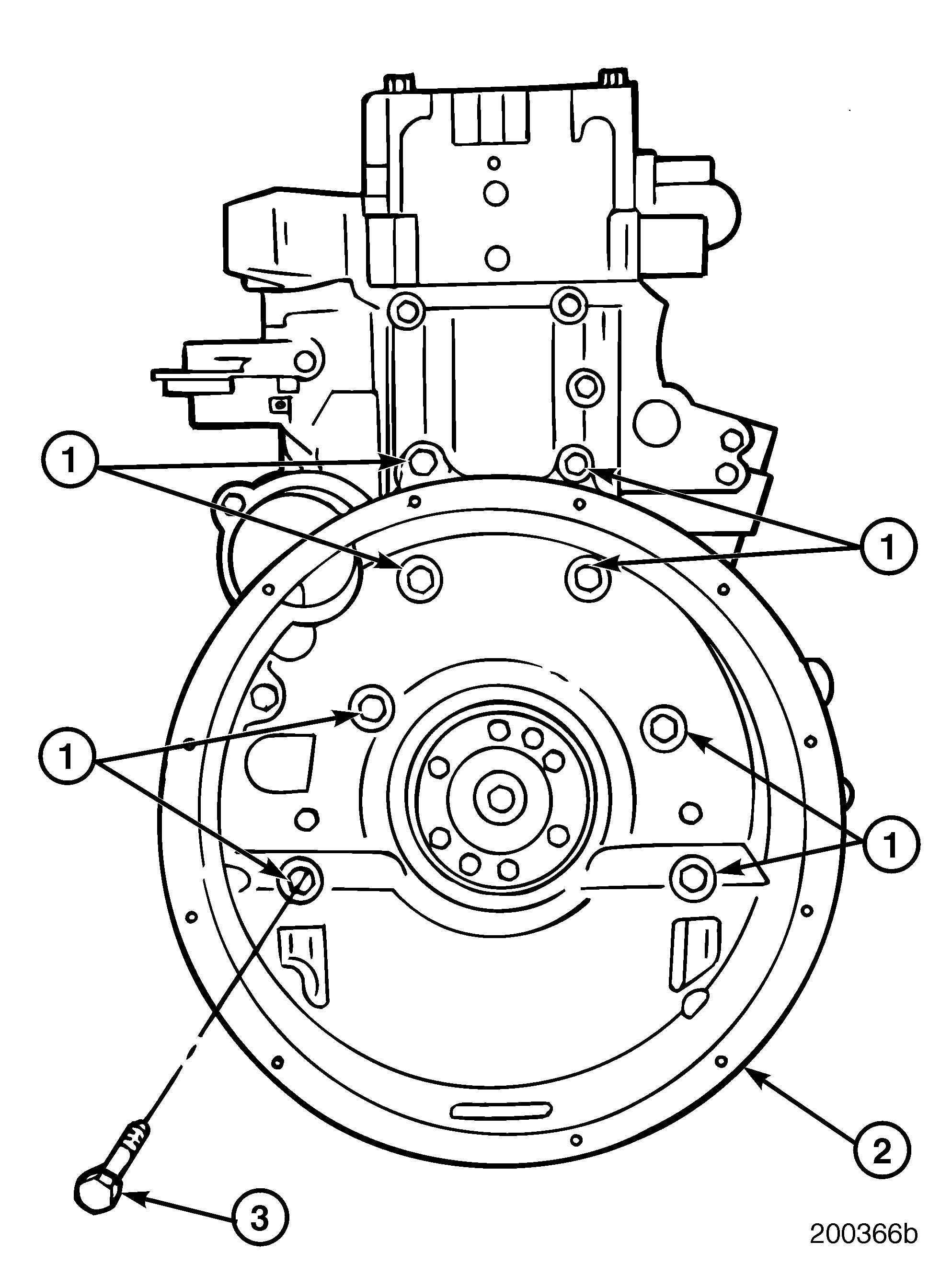

Refer to Figure 152.

1.Remove eight mounting capscrews (3) from flywheel housing (2).

2.Remove flywheel housing. It may be necessary to tap lightly on the housing with a soft mallet to separate housing from engine block.
