REPAIR INSTRUCTIONS

Filter Element Removal

SPECIAL TOOLS REQUIRED r Fuel and Oil Filter Wrench J 24783 r Oil Filter Wrench J 29927

The oil filter elements, as well as the Centri-Max® assembly and the coolant inlet pipe between the heat exchanger and oil cooler, must be removed before mounting the adapter plate to the engine. If not already removed, remove the filters using the following procedure.

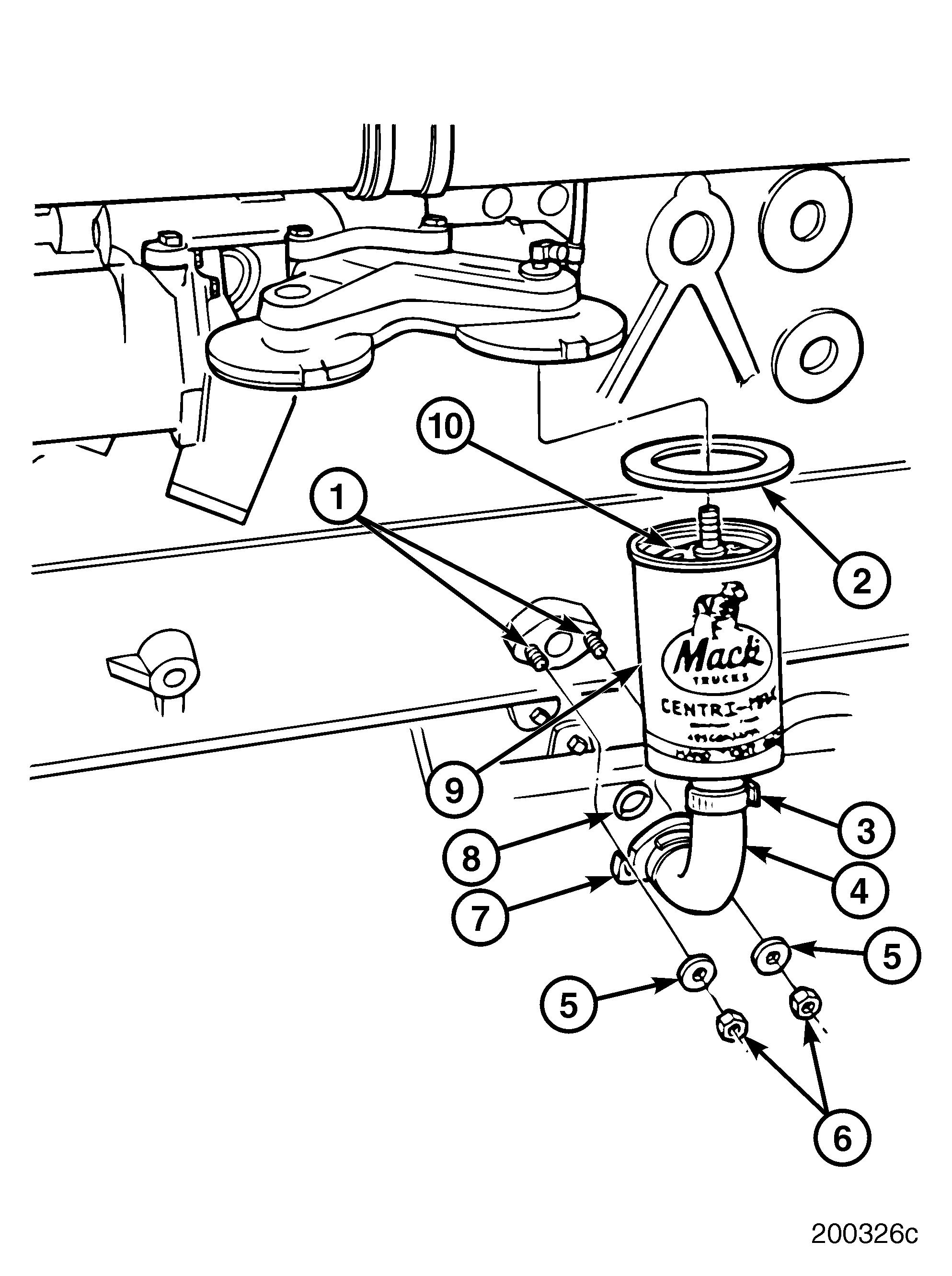

Refer to Figure 59.

1.Place a suitable container below the filter element area to catch any spilled fluids.

2.Using a suitable filter wrench, remove the oil filter elements. Do not reuse filter elements. Discard used elements in a responsible, environmentally safe manner.

Do not apply the filter wrench to any area other than that labeled WRENCH HERE on the Centri-Max® filter housing, or damage to the housing may result.

3.Loosen drain hose (4) from the Centri-Max® filter housing assembly by loosening hose clamp (3) at the Centri-Max® housing.

4.Remove two nuts (6) and two washers (5) from studs (1) securing hose adapter (7) at the cylinder block. Discard O-ring (8).

5.Remove drain hose and adapter as an assembly.

6.Using tool J 24783, remove the centrifugal oil filter housing (9).

7.Remove and discard the filter seal (2) and the centrifugal cartridge (10). Clean the filter housing.
