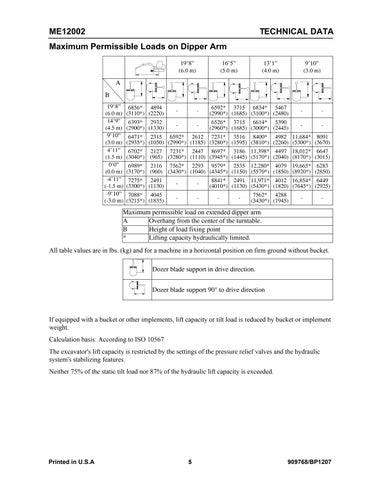

ME12002
TECHNICAL DATA
Maximum Permissible Loads on Dipper Arm 19’8” (6.0 m)
16’5” (5.0 m)
13’1” (4.0 m)
9’10” (3.0 m)
A B 19’8” 6856* 4894 (6.0 m) (3110*) (2220) 14’9” 6393* 2932 (4.5 m) (2900*) (1330)
-
-
6592* 3715 6834* 5467 (2990*) (1685) (3100*) (2480)
-
-
-
-
6526* 3715 6614* 5390 (2960*) (1685) (3000*) (2445)
-
-
9’10” 6471* 2315 6592* 2612 7231* 3516 8400* 4982 11,684* 8091 (3.0 m) (2935*) (1050) (2990*) (1185) (3280*) (1595) (3810*) (2260) (5300*) (3670) 4’11” 6702* 2127 7231* 2447 8697* 3186 11,398* 4497 18,012* 6647 (1.5 m) (3040*) (965) (3280*) (1110) (3945*) (1445) (5170*) (2040) (8170*) (3015) 0’0” 6989* 2116 7562* 2293 9579* 2535 12,280* 4079 19,665* 6283 (0.0 m) (3170*) (960) (3430*) (1040) (4345*) (1150) (5570*) (1850) (8920*) (2850) -4’11” 7275* 2491 8841* 2491 11,971* 4012 16,854* 6449 (-1.5 m) (3300*) (1130) (4010*) (1130) (5430*) (1820) (7645*) (2925) -9’10” 7088* 4045 7562* 4288 (-3.0 m) (3215*) (1835) (3430*) (1945)
Maximum permissible load on extended dipper arm A Overhang from the center of the turntable. B Height of load fixing point * Lifting capacity hydraulically limited. All table values are in lbs. (kg) and for a machine in a horizontal position on firm ground without bucket. Dozer blade support in drive direction. Dozer blade support 90° to drive direction
If equipped with a bucket or other implements, lift capacity or tilt load is reduced by bucket or implement weight. Calculation basis: According to ISO 10567 The excavator's lift capacity is restricted by the settings of the pressure relief valves and the hydraulic system's stabilizing features. Neither 75% of the static tilt load nor 87% of the hydraulic lift capacity is exceeded.
Printed in U.S.A
5
909768/BP1207
