5.Apply grease to swash plate (212) and to the sliding sections of swash plate support (251). See Figure 3-60.

1.Place pump casing onto the work area with the regulator-mounting surface facing downward.

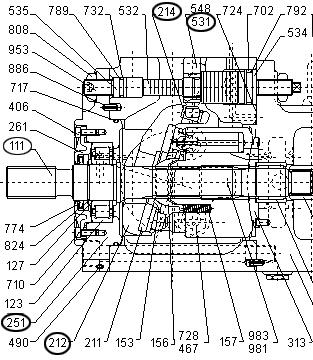

2.Install swash plate (212) and tilt bushing (214) onto tilting pin (531). See Figure 3-59 and Figure 3-60.

3.Install swash plate (212) onto swash plate support (251) and install the O-ring. See Figure 359 and Figure 3-60.

4.Confirm that swash plate (212) is installed correctly. Check that it can be removed smoothly. See Figure 3-59 and Figure 3-60.

6.Install drive shaft (111) through swash plate (212) and swash plate support (251). See Figure 3-60 and Figure 3-61.

7.Complete steps 1-6 for both the rear and front pumps.
